optical technology combined with high-performance ISP and AI module,and based on unique software AE algorithm,it can realize efficient palm detection and closed-loop palm image AE under various lighting conditions(including low light environment).Inorder to provide high- quality palm and palm vein images and complete image processing in the camera module,the upper computer needs to run palm/palm vein recognition algorithms including live detection and feature extraction. It is recommended to use a system with a computing power of at least Arm4*A17@1.8GHz. The SDK supports Windows/Linux/Android platforms and x86_64 and ARMv7/ARMv8 architectures,with specific performance optimizations for embedded architectures.

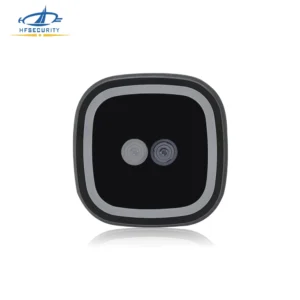

HF-VP930Pro Multimodal Palm Recognition Module

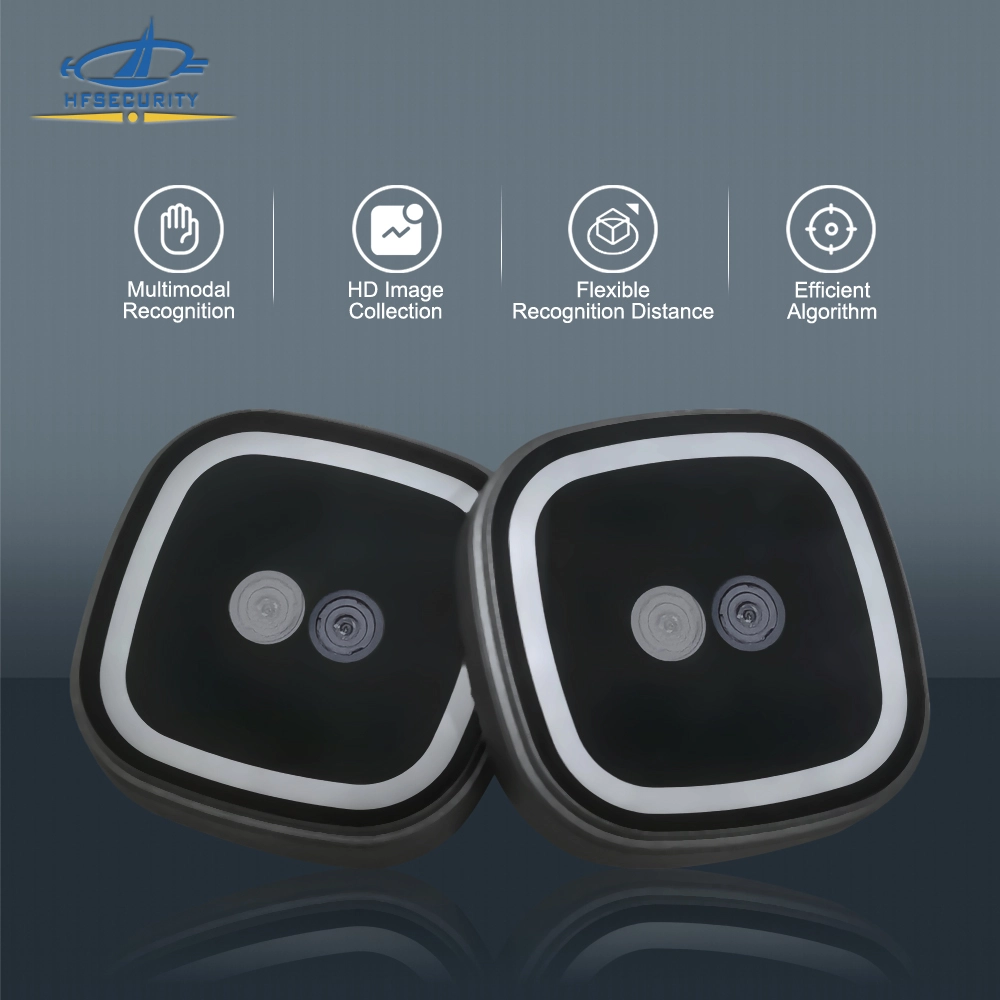

- Multimodal Recognition;
- HD Image Collection;
- Fiexible Recognition Distance;
- Efficient Algorithm;
- Wide Compatibility;
- Lightweight Compact Design;
- Broad Perspective;
Innovative Dual Mode Recognition Security Upgrade
Innovative palm print and palm vein recognition technology, with multiple recognition modes to choose from, Palm Print +Palm Vein dual recognition, palm print recognition +Vein livness recognition
Color prompt status
Every operation is comfortable and pleasant; The pleasant interaction experience ,with different fill light indications.Create a high quality user experience for customers.
Widely Application
Widely applicable, covering multiple scenarios;
- Palm ID and access control;
- Subway turnstiles;
- Retail Payments；
Wet Palm
Excellent anti-interference ability, can effectively identify wet;
◆Support cloud version
◆Palmprint/Palm Vein Dual-Modal
◆Polarized light system
◆RGB/IR aligned
◆Palm AE inside
◆Customized Lighting Interaction System
◆Large Field of View (FOV), 5~15cm Palm Scanning Working Distance
◆Palm ID and access control
◆Subway turnstiles
◆Retail payments
Model&Specification
| Model&Specification | VP930Pro | |
| Module Parameter | Overall dimensions | L53.33mm*W53.33mm*H14.43mm |
| 카메라 | RGB/IR | |
| 통신 인터페이스 | USB TypeC(USB2.0 Agreement) | |
| Palm capacity | 20000 | |
| Palm working distance | 5~15cm | |
| QR code scanning working distance | 3~20cm,Supports for Simple QR Code | |
| 작동 전압 | 5V~12V | |
| Power supply current | >1.5A@5V | |
| Module power consumption | Average 2.5W | |
| ESD level | Contact discharge±4KV,air discharge±8KV | |
| Support international standards | ISO/IEC19794-6,ISO/IEC24745,ISO/IEC30107-3,ISO/IEC29794 | |
| Palm Scanning Angle | Pitch angle≤30°,roll angle≤30°,horizontal rotation ≤360° | |
| PalmAlgorithm Performance | Palm Recognition Success Rat | 99% |
| Host Computing Power Requirements | ≥4*A17@1.8GHz | |
| Algorithm Deployment Method | Support fo rLocal Deployment and Cloud Deployment | |
| Cloud Library Capacity | Support half a million,1/2/..5million,depends on servercapacity | |
| Firmwareand SDKCapability | Image Processing | High-Performance ISP inside/Palm AE inside |
| 보안 | Palm vein Feature Encryption | |
| OTA Support | Support for USB Upgrade | |
| Compatibility of the system | Support for Android7/8/9/10;Support for Windows 10 | |
| Operating Conditions | 작동 온도 | -10℃~50℃ |
| Relative Humidity | 0~95% | |
| Illuminance | 0~50,000Lux（Module Not Exposed to Direct Sunlight） | |
| Storage Conditions | 보관 온도 | -40℃~85℃ |
| 보관 습도 | 10%~95% | |
