The HF-DS08 Face Recognition Payment Terminal is an advanced Android-based biometric terminal designed for secure identity verification, payment authentication, and intelligent access management. Integrating face recognition, palm vein recognition, fingerprint authentication, NFC card reading, and optional National ID/MRZ support into a single desktop device, HF-DS08 delivers fast, contactless, and highly accurate authentication for various commercial and government applications.
Powered by Android 11 and equipped with a high-performance processor, dual cameras, and multiple communication interfaces, HF-DS08 provides flexible deployment for financial services, retail, healthcare, transportation, public services, and smart campuses.
Whether deployed for biometric payment, customer identity verification, visitor registration, or self-service authentication, HF-DS08 offers an efficient, secure, and scalable solution.
Multi-Biometric Authentication

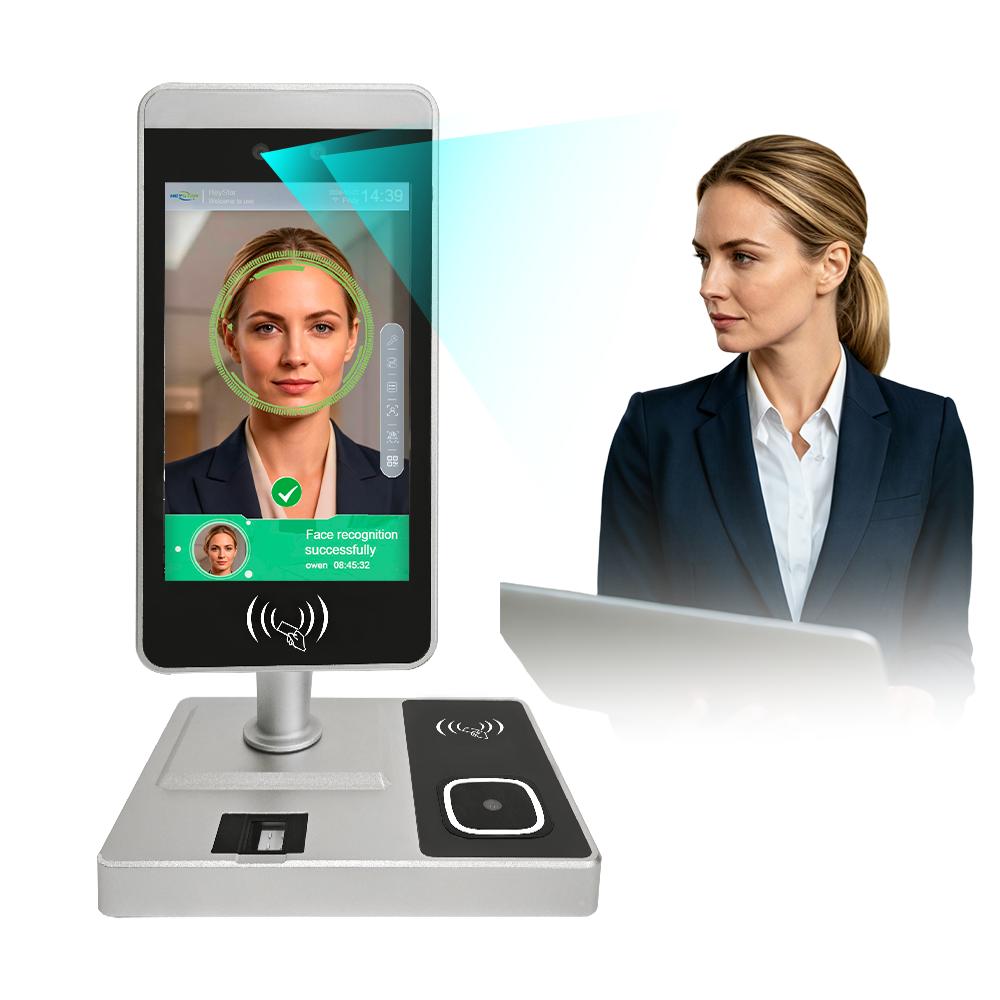

Khuôn mặt

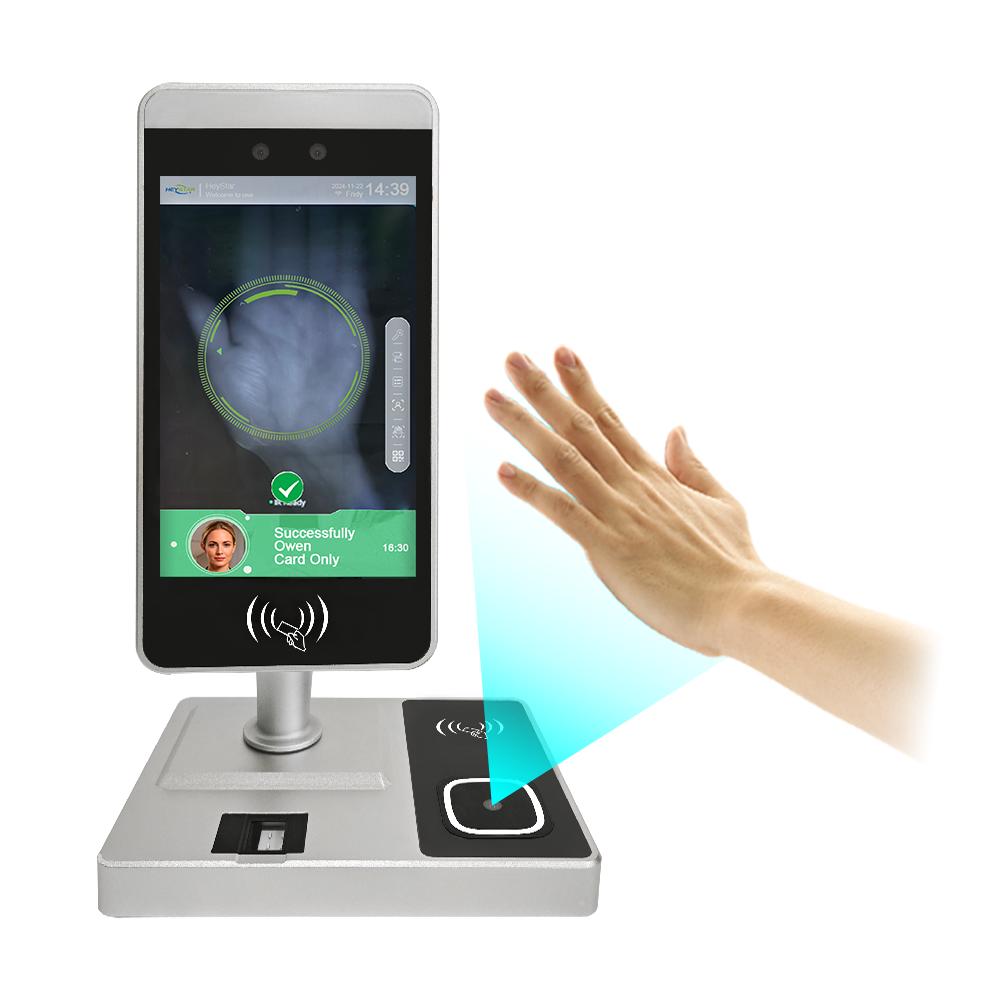

Palm vein

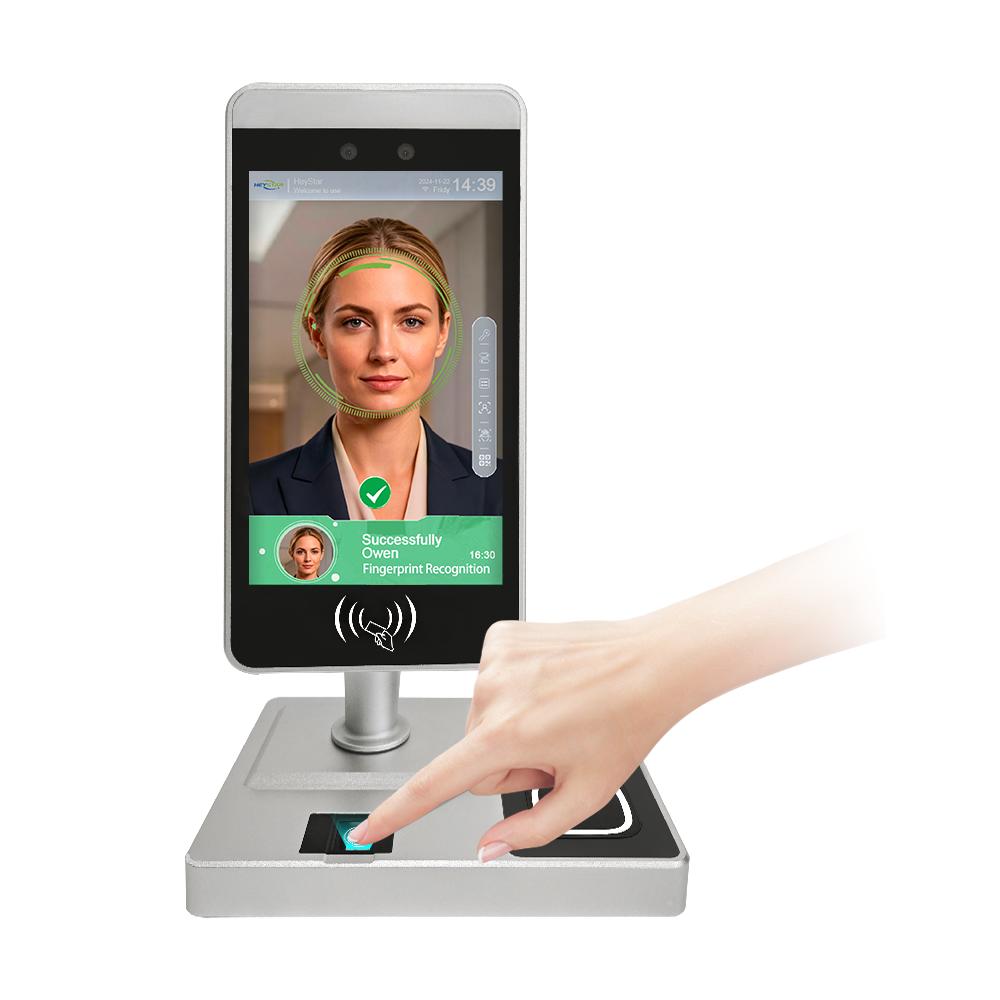

Dấu vân tay

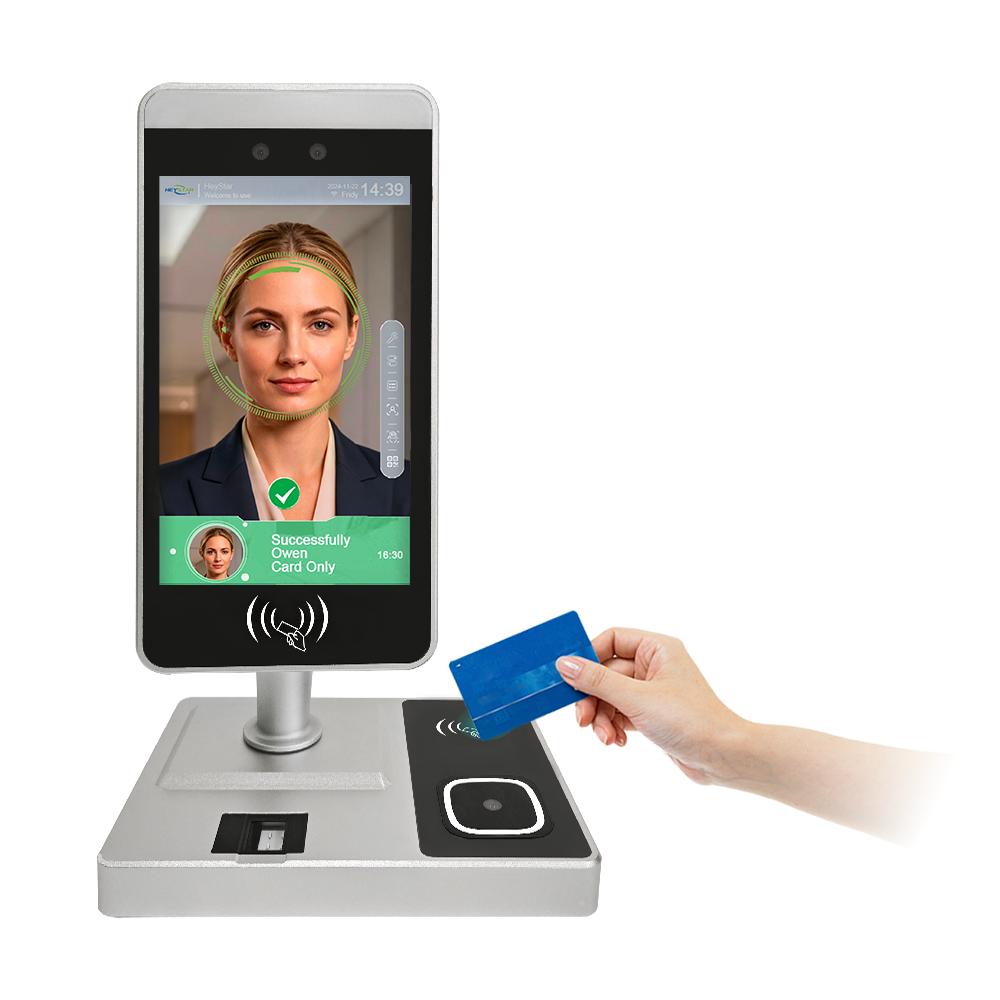

NFC

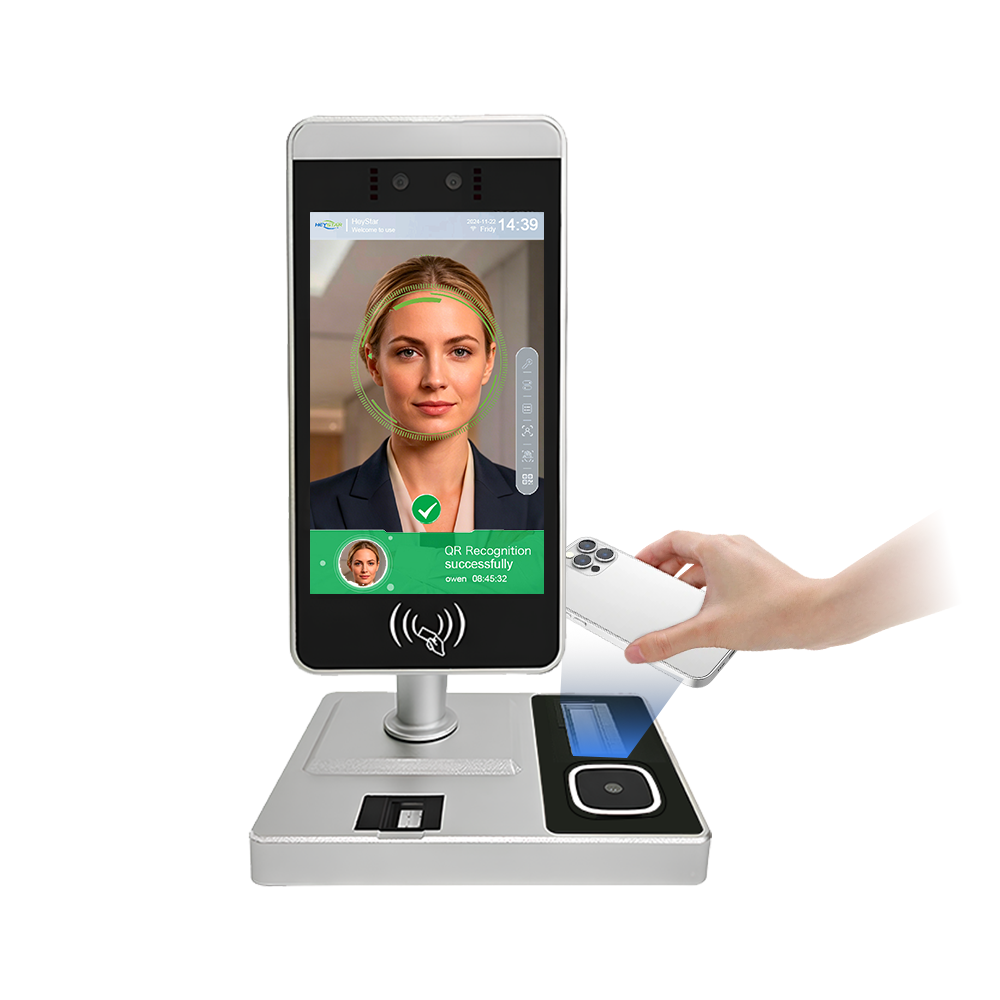

Mã QR
Visitor Management
Visitors can verify their identity using facial recognition, fingerprint, or palm vein authentication, improving security while reducing manual registration.
Suitable for:
- Corporate Offices
- Government Buildings
- Industrial Parks
- Business Centers
Xác minh danh tính
The optional National ID and MRZ recognition functions make HF-DS08 ideal for identity verification in:
- Banks
- Financial Institutions
- Government Agencies
- Immigration
- Border Control
- Telecom Registration
- Du lịch và nhập cư :
Smart Payment
Biometric payment eliminates passwords and physical cards, providing a faster and safer checkout experience.
Ideal for:
- Retail Stores
- Supermarkets
- Cafeteriasa
- Smart Canteens
- Hospitals
- Campus Payment
Unlike traditional single-biometric terminals, HF-DS08 combines multiple authentication technologies into one intelligent platform, allowing businesses to choose the most suitable verification method according to different scenarios.
| Hệ điều hành | Android 11 |
| Trưng bày | 8″Full view angle IPS LCD touch screen |
| Screen Resolution | 1280*800 HD display |
| Kích thước | 22CM*16CM*35CM |
| Cân nặng | 1806G |
| RFID Card | Support ISO14443A/B |
| Nhiệt độ hoạt động | -10℃ ~ 60℃ |
| Độ ẩm làm việc | 10% đến 90% |
| Nguồn cấp | DC12V(±10%) |
| CPU | Quad core, 1.8GHz |
| ĐẬP | 2GB |
| rom | 16GB |
| Ánh sáng lấp đầy | Đèn LED lấp đầy |
| Giao tiếp | Support Wi-FI, Bluetooth |
| HDMI(Reserve) | *1 |
| USB2.0 | *2 |
| RJ45 | *1 |
| RS232 | *1 |
| Interface Earphone | *1 |
| Loại C | *1 |
| DC 12 | *1 |
| Facial data Capacity | 50,000 face data |
| 1:N Face recognition | 99.99% |
| 1:1 Face recognition | 99.99% |
| Strangerdetection | Ủng hộ |
| Recognizedistance | Support (0.5m~4m) |
| Miệng vỏ | 4mm |
| Focal length | 0-2m |
| White balance | Tự động |
| Wide dynamic | Tự động |
| Máy ảnh kép | 2.0MP RGB camera; 1.3MP Infrared camera |
| Camera Type | Camera động rộng |
| Loại cảm biến | Quang học |
| Độ phân giải hình ảnh | 500dpi |
| Khu vực mâm hoạt động | 15.24mm x 20.32mm |
| FAP (fingerprint acquisition profile) | FAP20 |
| Maximum acquisition time (Placement to Template) | <3s |
| Tiêu chuẩn vân tay | ISO19794-2 |
| Chứng nhận | CE, FBI |
| thang độ xám | 8 bit, 256 levels |
| Live finger detection | Đúng |
| Máy ảnh | RGB/IR |
| Palm capacity | 20 |
| Palm working distance | 5~15cm |
| Thời gian xác minh | ＜1s |
| ESD level | Contact discharge±4KV,air discharge ±8KV |
| Support International standards | ISO/IEC1919-4-6,ISO/IEC24745, ISO/IEC30107-3,ISO/IEC29794 |
| Palm Recognition success Rat | 99% |
| Algorithm deployment Method | Support for local and Cloud Deployment |
| Cloud Library capacity | Support half a million,1/2/..5 million, depends on server capacity |
| Image processing | High performance ISP inside/Palm AE inside |
| Bảo vệ | Palm vein feature encryption |
| NFC | Support ISO14443A, ISO14443B, ISO15693, ISO18092, Felica |
| National ID/ MRZ | Ủng hộ |
The HF-DS08 Face Recognition Payment Terminal combines face recognition, palm vein recognition, fingerprint authentication, NFC technology, and intelligent identity verification into one powerful Android platform. Designed for modern payment systems, access control, visitor management, and digital identity applications, HF-DS08 delivers fast, secure, and highly reliable biometric authentication for organizations seeking advanced security and operational efficiency.
Contact HFSecurity today to learn more about HF-DS08, request technical documentation, obtain SDK support, or discuss OEM and ODM customization for your biometric solution.
