The WorldID G2oo FAP6o Fingerprint & Palmprint Scanner combines advanced optical imaging technology with reliable biometric algorithms to deliver accurate fingerprint and palmprint acquisition for high-security environments.
Designed for professional enrollment scenarios, the scanner supports multiple fingerprint capture modes while meeting the stringent imaging standards required by government agencies and large-scale identity management projects.
Its developer-friendly Windows SDK significantly reduces integration time, making it an ideal biometric device for OEM partners, software developers, and system integrators.
Key Features
FBI IQS Appendix F Compliance
Fully compliant with FBI-certified image quality standards, ensuring reliable biometric data for official identity systems.
FAP60 Large Area Sensor
Equipped with a high-precision FAP60 optical sensor, enabling large-area capture for more accurate fingerprint and palmprint acquisition.
Multi-Mode Fingerprint Capture
Supports multiple capture methods:
- Single Finger Capture
- Rolled Finger Capture
- Four-Finger Slap Capture
- Two-Thumb Capture
- Full Palmprint Capture
High-Resolution Image Output
Delivers clear ridge detail and high contrast images for superior matching accuracy in biometric systems.
Windows SDK Integration
Provides a complete Windows SDK toolkit for fast integration into:
- Identity management systems
- Border control software
- Law enforcement databases
- Enrollment platforms
Stable & Fast Enrollment
Optimized scanning engine ensures fast capture speed and stable performance for high-volume enrollment environments.
Multiple Biometric Capture Modes

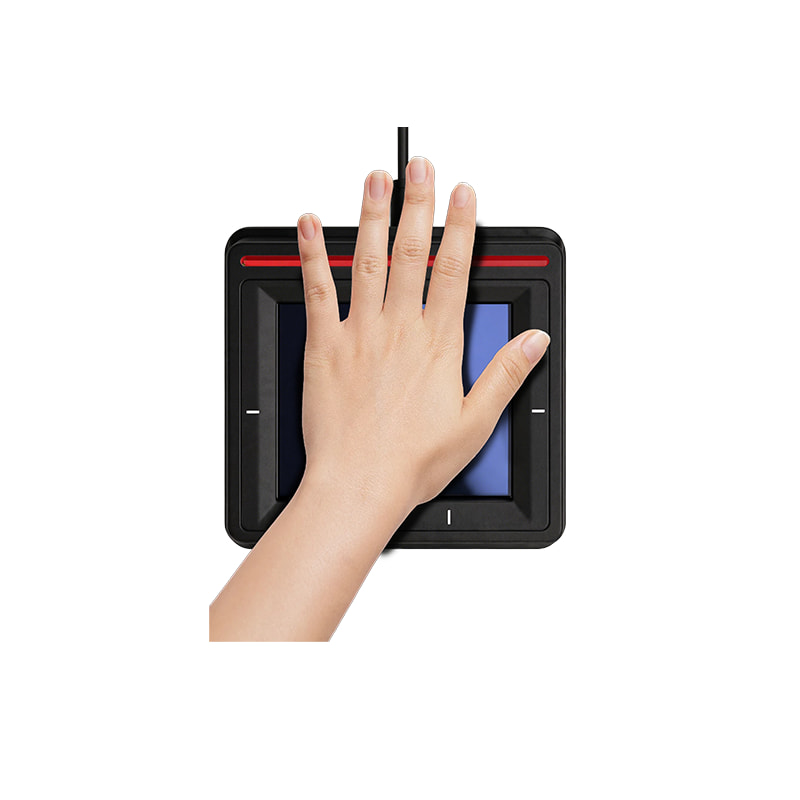

Full Palmpint Capture

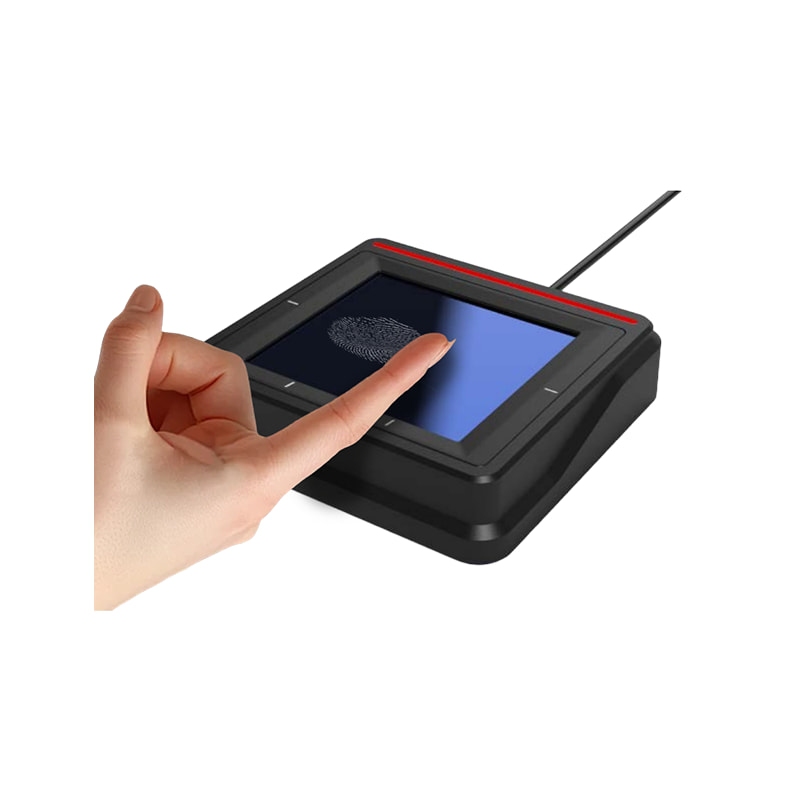

Rolling Fingerprint

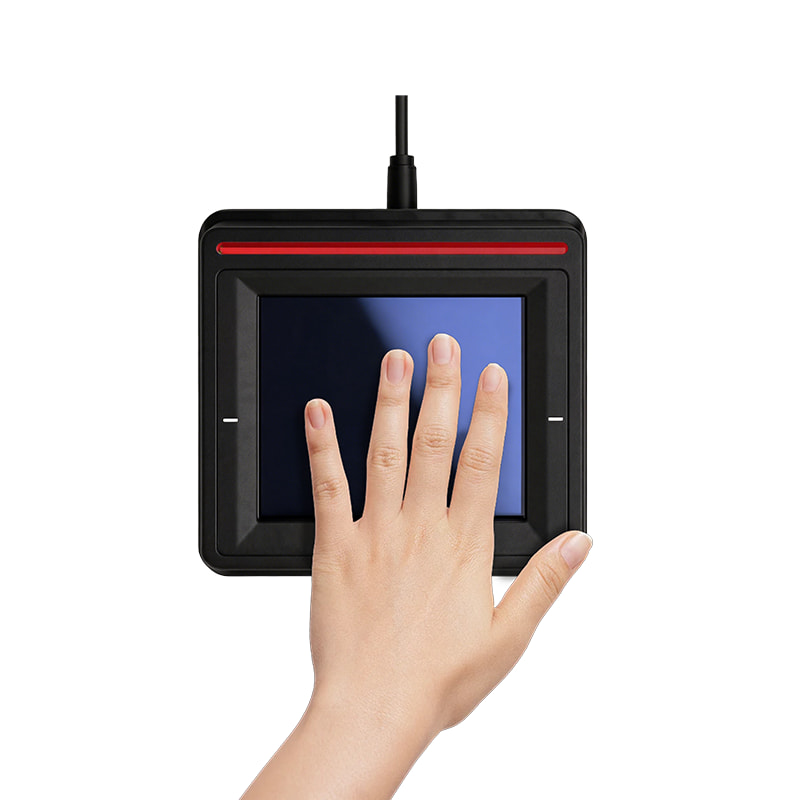

Four-Finger Slap
Dual-Thumb Capture
| Product Dimensions (W x L x H) | 133.0mm x 120mm x 30 mm |
| Effective Image Size (W x L) | 81.28mm x 76.2mm |
| Acquisition Window Size (W x L) | 87.6mm × 78.2mm |
| Acquisition Rate (fps) | ≥2 (4-Finger); ≥10 (Rolls) |
| Communication Interface | USB2.0 Type-A |
| Indicator Lights | 1 indicator light |
| Speaker | Supports voice broadcast |
| Power supply voltage | 5 V DC ±5% (USB power supply) |
| Operating current | ≤600mA (USB power supply) |
| Operating temperature | -10℃~55℃ |
| Storage temperature | -20℃~60℃ |
| Environmental humidity | 20% RH~90% RH (non-condensing) |
| Protection rating | IP65 (sensing surface) |
| Surface hardness | 9H |
| Sensor Type | Single finger; 1600*1500, 800*750 (rolling fingers) |
| Basic Function | TFT Optical |
| Image Resolution | 500dpi |
| Image Size | 4-finger/palm print image: 1600 x 1500 Rolling image: 800 x 750 |
| Image Quality | FBI IQS Appendix F |
| Image Grayscale Levels | 256 |
| Supported Operating Systems | Windows 10 and above |
Public Security & Law Enforcement
Immigration Biometric Enrollment
Customs & Border Protection
Airport Security & Passenger Processing
Optimized for Large-Scale Enrollment Projects
The WorldiDG2oo is engineered for high-volume biometric registration environments,ensuring stable performance even under continuous and
intensive usage scenarios.
Superior Image Quality Consistency
Advanced imaging calibration ensures consistent fingerprint and palmprint quality across different users,reducing re-capture rates and improving
overall systemefficiency.
Faster Enrollment Workflow
Designed to streamline the capture process,the device minimizes operator dependency and reduces the time required for each enrollmentsession.
Highly Reliable Hardware Design
Built with industrial-grade components to ensurelong-term stability,making it suitable for mission-critical identity verification systems.
Flexible Integration Architecture
With a developer-friendly Windows SDk,the device can be easily integrated into various identity management platforms and customized biometric
systems.
Designedfor Government-Level Projects
Meets the strict operational demands of border control, public security, and national identity systems with proven reliability and compliance-ready
performance.
The WorldID G200 delivers accurate fingerprint and palmprint capture for enrollment systems.
It is built for government and identity verification projects with stable performance and reliability.
Contact us for pricing, SDK access, and technical support.
