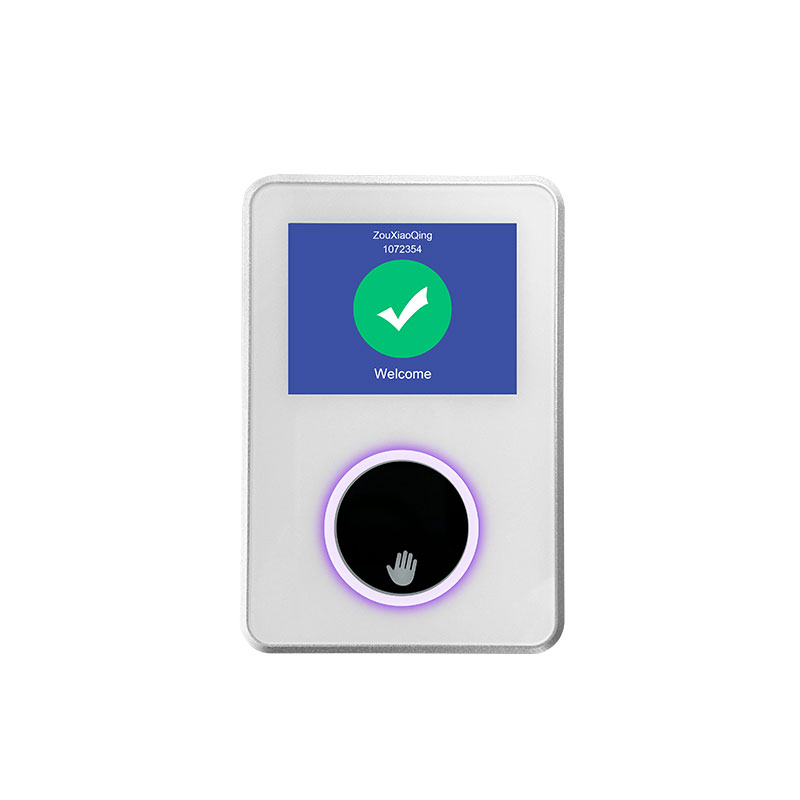

Palm Vein Access Control Terminal-PA28
We’re excited to introduce our Linux-based Palm Vein Access Terminal—a next-generation zero-touch security solution. It uses unique, unclonable palm vein recognition technology to provide security for access control, offices, and high-security areas. No card, no fingerprint—just your palm.
Key Features for Improving Efficiency
2.8-inch Touchscreen Interface
Intuitive Linux operating system with easy registration and instant verification.
Wiegand Interface Support
Easily integrates with existing security systems (compatible with most controllers).
Linux Operating System Platform
Stable, customizable, and secure – ideal for enterprise expansion.
| Model | HF-PA28 |
| Dimensions | 80mm*120mm*44.65mm |
| Camera | Palm Vein camera, supporting palm print and palm vein imaging |
| Operation System | Linux |
| Recognition Angle | Pitch angle 30°, roll angle 30°, horizontal rotation angle 180° |
| Database Capacity | Supports a database scale of up to tens of thousands,combining local and cloud-based recognition |
| Palm Vein Scan Distance | 5-12cm |
| Psensor Sensing Distance | 5-30cm |
| Screen | 2.8-inch, touchable |
| Storage Module | EMMC: 4GB |
| Capacity | 2W |
| Network | Supports Wi-Fi 11b/g/n 2.4G single band |
| Communication Interfaces | wiegand (26/34), relay, USB host, USB device, UART(RS232),Rj45 |
| Power Supply | 12V/2A |
| Firmware Upgrade | Supports OTA upgrade |
| Recognition Speed | Local recognition 600ms, excluding business processing time |
| Recognition Accuracy | 98% (TAR) @ 1e-6 (FAR) |
| Working Temperature | 0-55° |
| Working Humidity | Relative humidity : 0% -95%, no condensation |
| Storage Temperature | -20 °- 60 ° |
| Storage Humidity | Relative humidity : 0% – 90% no condensation |
| Normal Operating Temperature Rise | Temperature rise of front glass cover ＜20 |
| ESD Rating | Contact discharge 8KV, air discharge 12KV |
| IP Rating | IP55 (front surface of the device) |
