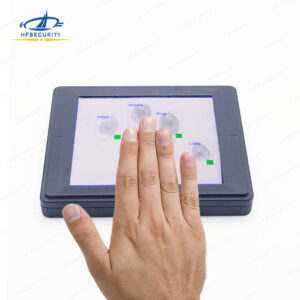

10 Fingerprint Scanner Device BioSlim10-P — Ultra-Thin Ten-Print Live Scanner
10 fingerprint scanner BioSlim10-P FAP60 device is a biometric fingerprint reader that can be used for various applications, such as access control, time attendance, and identification purposes. The device is designed to capture and store fingerprints for authentication and security purposes. It is compatible with various operating systems and can be integrated with different software platforms.
BioSlim10-P RealScan Compact Ten-print Live Scanner
The unchallenged speed, reliability, and image quality set us apart in the industry.
Known for their superior speed, reliability and image quality, our products have been proven time and time again to be flawless. Whether you use it for personal use or project work, our products guarantee the best experience. We differentiate ourselves as the top choice in the industry with unparalleled speed, reliability and image quality. Whether you are a professional user or an ordinary user, our products will meet your needs, providing excellent performance and superior visual experience.
BioSlim10-P Specification
Complete technical parameters for tender documents and system design — sourced from the official BioSlim10-P (FAP60) datasheet.
| Item | BioSlim10-P |
|---|---|
| Module dimension | 122 mm × 102.4 mm × 15.9 mm |
| Resolution | 1600 × 1500 (4 fingers) · 640 × 640 (rolled fingers) |
| FPS | ≥ 2 (four fingers) · ≥ 15 (rolled fingers) |
| Finger image area | 82.3 mm × 78.2 mm |
| Operating brightness | Supports 100,000 Lux — full-sunlight outdoor enrollment |
| ESD | 15 kV (air) · 8 kV (contact) |
| Dust and water resistance | IP65 |
| Surface hardness | 9H |
| OS | Windows 7–11 · Android 9–12 |
| PPI | 500 PPI |
| Interface | USB 2.0 (1 A @ 5 V) |
| Operating temperature | −20 °C to 60 °C |
| Scanning | Supported — 4-flat + rolled ten-print capture |
| Certification | FBI Appendix F (FAP60) |

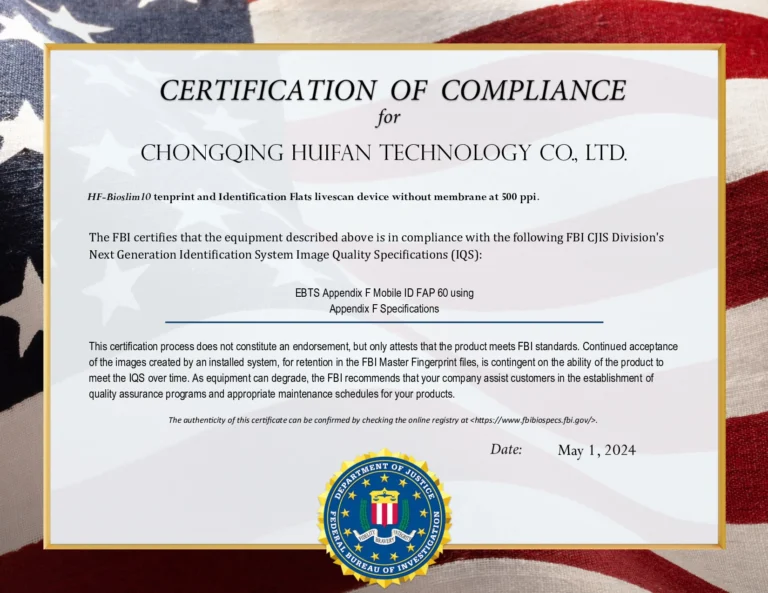

Certified for Regulated Enrollment Programs
The BioSlim10-P has passed FBI Appendix F certification and can be used in entry-exit inspection, elections, relief fund collection and other fields.
FBI Certified FAP60
Appendix F image-quality compliance for government programs
Fingerprint Scanner CE
EU conformity for health, safety and environmental protection
Fingerprint Scanner FCC
US electromagnetic interference compliance
Fingerprint Scanner ROHS
Hazardous-substance-free manufacturing
Six Reasons Integrators Choose BioSlim10-P
Portability
The product is small and light, allowing users to carry it with them and perform fingerprint scanning at any time and anywhere, making it convenient and flexible.
Accuracy and reliability
The product's high accuracy and reliability ensure that each fingerprint scan can be completed accurately and quickly, reducing the error rate and improving user experience.
Security guarantee
The product has a high level of security guarantee, such as data encryption, fingerprint recognition algorithm and other functions to protect the security of users' personal information and fingerprint data.
Functionality
In addition to traditional live body real-time collection, Bioslim10 also adds a dry and wet fingerprint detection function to meet users' needs and provide higher identification accuracy.
User-friendliness
The simple and clear operation interface and user-friendly design enable users to get started easily and quickly complete fingerprint scanning, improving user satisfaction.
Market differentiation
Different from the ten-fingerprint sensors on the market, smaller size, higher performance, etc., to enhance your competitiveness.
Field Deployments Across the World
From banks and elections to social-protection programs — HFSecurity enrollment devices run where the internet is weak, the sun is strong and the queue is long.
HF7000 Pakistan Fingerprint Scanner Bank
Counter-top biometric verification for branch banking and KYC.
Medical Dispatch — Ghana GNHR
Biometric identity capture for national relief and welfare dispatch.
HF7000 Fingerprint Scanner for Canteen
Sub-second identity check at the serving line.
HF7000 Farmers Management Fingerprint Scanner
Enrolling agricultural workforces for subsidy and attendance programs.
National Election — Angola
Voter registration and polling-day deduplication at national scale.
Mobile Field Registration
Android phone plus fingerprint scanner for door-to-door enrollment.
SDK, Demo Software and Full Datasheet
Ten Fingerprint Scanner Software
Free demo software for Windows: live 4-flat and rolled capture, ISO/ANSI template output and image-quality feedback — evaluate the BioSlim10-P with your own fingers in minutes.
Windows demoISO 19794-2 / ANSI 378Free trialClick here — download trial software
Bioslim10-FAP60-live-scan-device
Official datasheet with the full specification table, module drawings and certification list — ready to attach to your tender or project document.
PDF datasheetSpecificationsFree downloadClick here — get the datasheet (PDF)
Not sure if we are a good match for you or which style you want to buy?
Free trial software is available. For more information, get in touch — our engineers reply within one business day.
Get a Quote for BioSlim10-PBioSlim10-P — Frequently Asked Questions
What does FAP60 mean on the BioSlim10-P?
Why does a glass-substrate sensor matter?
Can it be used outdoors in direct sunlight?
Which operating systems and software does it support?
What is it used for in real projects?
Is OEM / ODM customization available?
