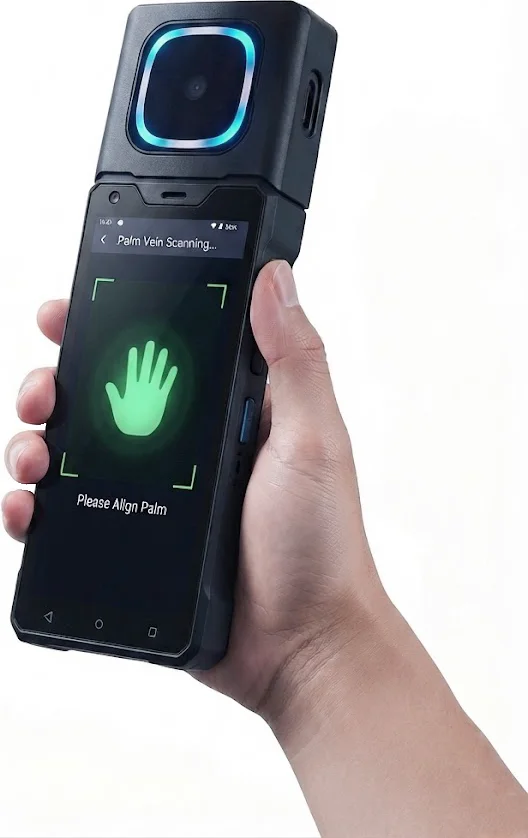

Rugged Handheld Biometric Terminal — HF-HP505PV
The HF-HP505PV is an IP67 rugged handheld biometric terminal for identity verification where fixed terminals cannot go — hospital bedsides, gloved production lines, −20 °C cold chains and outdoor patrols — with 5–15 cm contactless palm vein matching and a 4700 mAh full-shift battery.
Verification That Survives the Shift, the Weather and the Gloves
Where fixed terminals cannot go: bedsides, gloved lines, cold chains and patrol routes.
Verify Through Gloves — 5–15 cm Contactless
Nurses confirm patient identity at the bedside without removing gloves; line workers sign off work orders with protection gloves on; wet and oily hands still match.
Built for the Worst Shift
IP67-sealed housing survives disinfectant wipe-downs in isolation wards; 1.5 m six-face drop onto marble; −20 °C to 55 °C covers cold stores and loading docks.
Full-Shift Power, Swap in Seconds
4700 mAh removable battery runs 12 h+ of outdoor patrol — swap batteries between shifts instead of docking the device.
Global Bands, Dual-Band Wi-Fi
4G with global carrier bands plus dual-band Wi-Fi and Bluetooth 5.0 keeps records syncing from anywhere on site.
Three Hardware Builds, One Platform
Configure as palm vein + NFC, fingerprint + 2D imager + NFC, or thermal-imaging + 2D + NFC; optional OCR license-plate and face recognition modules.
Every Function, Itemised
Five functional groups — the complete capability list behind the handheld.
🖐Biometric Core
Contactless identity at arm's length
- Palm vein 5–15 cm hover — RGB + IR dual camera, works through transparent gloves
- 20,000-palm capacity — 99% recognition success rate in the field
- Full-angle presentation — pitch 30° · roll 30° · yaw 360°, no precise alignment
- Natural liveness — subcutaneous vein patterns cannot be photographed or lifted
🎫Data Capture Modules
One device reads everything the job carries
- NFC reader — 13.56 MHz · ISO 14443A/B · ISO 15693 · CPU cards and NFC tags, 0–3 cm
- 1D/2D barcode scanning (optional) — QR · Data Matrix · PDF417 · Aztec · Code128 · EAN
- ID card module (optional) — complies with the Ministry of Public Security's GA467 standard, <1 s read
- 13 MP rear camera — autofocus + flash for photos, documents and damage records; 5 MP front
🛡Rugged Build
Rated for the environments that break consumer hardware
- IP67 sealed — dust-tight and water-jet proof, tolerates disinfectant wipe-downs
- 1.5 m drop, all six sides onto marble · 0.5 m rolling test × 1,000 times
- −20 °C to 55 °C — cold stores, loading docks and summer patrols; RH 5–95%
- ESD protection — ±8 kV air / ±4 kV contact discharge
🔋Power & Field Ops
Built around the whole shift, not the desk
- 4700 mAh removable battery — 20 h+ operating, 350 h+ standby, <3 h charge
- Battery swap in seconds — hot-swap between shifts instead of docking
- < 300 g — compact one-handed design for a full patrol or round
- 5.5" 720 × 1440 HD+ IPS — oil- and fingerprint-resistant coating, readable with wet hands or gloves
📡Connectivity & Platform
Records reach your platform from anywhere on site
- 4G all-network, dual SIM dual standby — 2G GSM · 3G WCDMA · 4G FDD/TDD multi-band
- Dual-band Wi-Fi 2.4/5 GHz · Bluetooth 5.0 + BLE
- GPS · GLONASS · BeiDou · Galileo — location-stamped records for patrol and inspection routes
- Android 13 + SDK — scanning/NFC APIs, enterprise MDM, Type-C OTG and expansion serial port
📋Full Specification Sheet
Dimensions, modules, environment and SDK detail for tender documents.
Download the Datasheet →HF-HP505PV Specifications
Complete technical parameters for tender documents and system design.
| Item | HF-HP505PV |
|---|---|
| Biometric options | Palm vein (5–15 cm contactless) · fingerprint · thermal imaging — by hardware build |
| Reading modules | NFC · 2D imager · optional OCR license plate · optional face recognition |
| Palm vein module | RGB/IR dual camera · 5–15 cm working distance · 20,000 capacity · 99% success rate · pitch 30° / roll 30° / yaw 360° |
| Fingerprint (optional) | 256 × 360 sensor · 508 DPI · public-security certified or civilian modules |
| NFC | 13.56 MHz · ISO 14443A/B · ISO 15693 · 0–3 cm |
| ID card module (optional) | GA467 compliant · reading distance 0–20 mm · <1 s |
| Barcode scanning (optional) | 1D/2D · QR / Data Matrix / PDF417 / Aztec / Code128 / EAN |
| Display | 5.5" 720 × 1440 HD+ IPS · capacitive touchscreen · wet-hand and glove operation |
| CPU / Memory | Octa-core 2.2 GHz · 3 GB RAM + 32 GB ROM (TF expansion up to 512 GB) |
| Operating system | Android 13 · SDK, scanning/NFC APIs · enterprise MDM |
| Cameras | 13 MP rear, autofocus + flash · 5 MP front |
| Battery | 3.8 V 4700 mAh removable · 20 h+ operating · 350 h+ standby · <3 h charge |
| Ingress protection | IP67 |
| Drop rating | 1.5 m, six faces, onto marble · rolling test 0.5 m × 1,000 times |
| ESD rating | ±8 kV air · ±4 kV contact |
| Operating temperature | −20 °C to 55 °C · RH 5–95% (storage −40 °C to 70 °C) |
| Connectivity | 4G (global bands) · dual-band Wi-Fi · Bluetooth 5.0 |
| Positioning | GPS · GLONASS · BeiDou · Galileo |
| Interfaces | Type-C (OTG) · expansion serial port · 2 × nano SIM · TF card · optional encryption card slot |
| Dimensions / Weight | 221 × 76 × 21 mm · < 300 g |
| Hardware builds | ① VP930 palm vein + NFC ② fingerprint + 2D imager + NFC ③ thermal + 2D + NFC |
| Certifications | CE · FCC · RoHS · CCC · IP67 · GMS · ISO 9001 |
In the Field by the Next Shift
Standard kit, Android platform and open SDK — enrollment to fleet management without custom hardware.
Boot & Enroll
Android 13 out of the box — enroll palms through the free SDK or on-device flow; cards, tags and barcodes work the same morning.
Verify on the Move
Contactless 5–15 cm palm matching through gloves; NFC, barcode and ID-card reads ride on the same terminal as the job demands.
Sync & Manage
4G and dual-band Wi-Fi push records in real time; enterprise MDM handles fleet configuration and OTA updates.

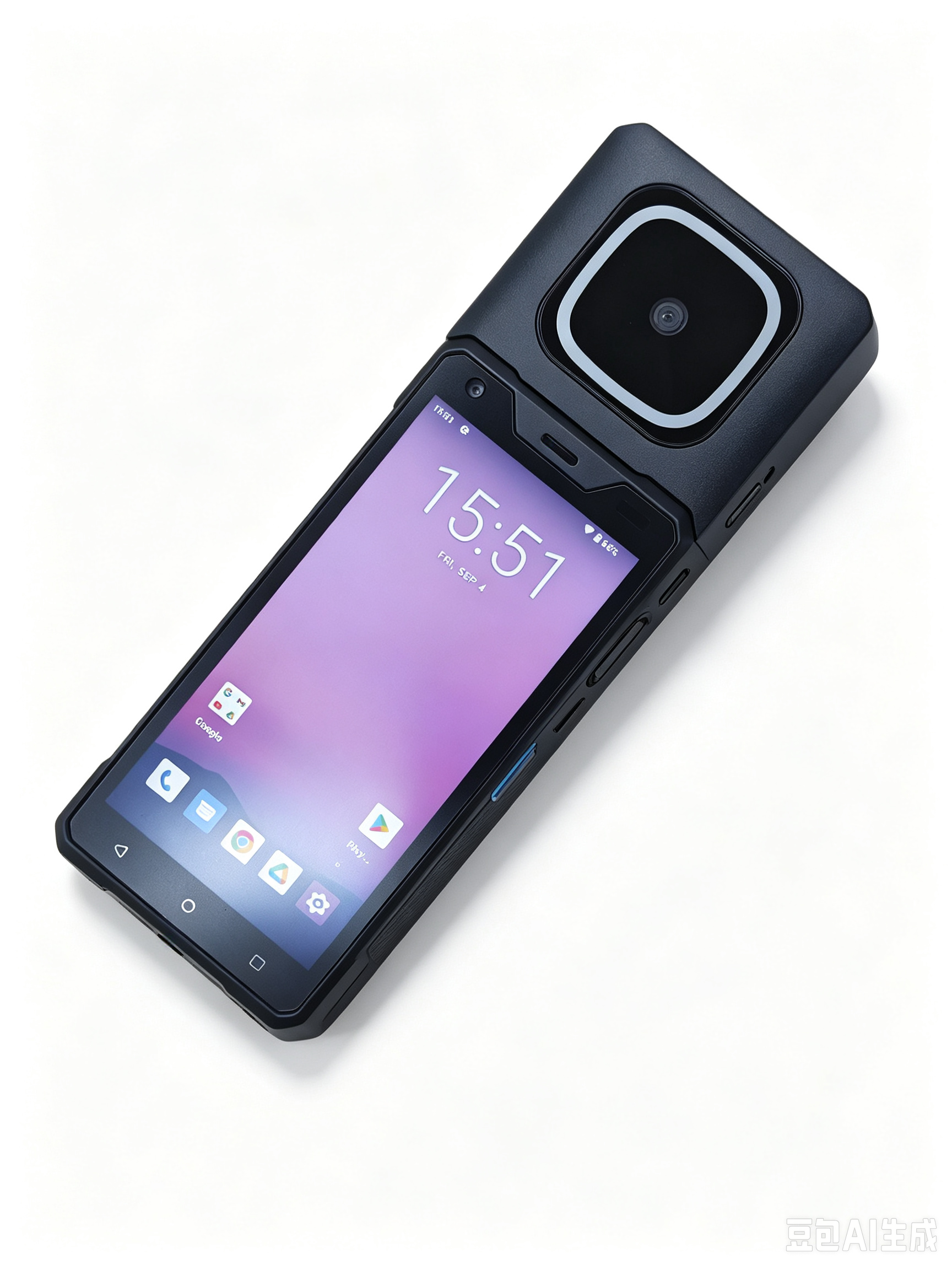

Standard kit, ready to patrol — main unit, power adapter, USB cable, SIM eject pin and product manual in every box.
HF-HP505PV — Frequently Asked Questions
What makes this handheld biometric terminal rugged?
Can it verify identity through gloves?
How long does the battery last?
Which recognition modules can I choose?
Does it sync data in the field?
Which OS and development support does it ship with?
Can it read ID cards and barcodes?
