Wireless Palm Vein Access Control & Payment —
PV-BW3000
The HF-PVBW3000 delivers wireless palm vein access control with no Ethernet and no conduit: a 2500 mAh built-in battery, Bluetooth 5.0 and Wi-Fi 2.4 GHz, and 20,000 palm templates stored on-board — install in a day, move it when the site moves. The same terminal verifies identity at canteens, staff stores and vending points for closed-loop payment that needs no EMV certification and no PCI audit.
Access and Closed-Loop Payment Where No Cable Reaches
All the accuracy of a wired palm vein terminal, none of the infrastructure — and payment built on the same verified identity.
Deploy First, Cable Never
A 2500 mAh lithium battery with Bluetooth 5.0 and Wi-Fi 2.4 GHz means site offices, pop-up counters, warehouses and rented premises get palm vein access the same day — and take the terminal with them when the lease ends.
20,000 On-Board — 5 Million+ in Cloud Mode
Matches up to 20,000 enrolled palms locally in ≤450 ms, so a campus gate or large office runs standalone out of the box. Switch the same terminal into cloud mode and templates move to your server, scaling one fleet to 5 million+ users — Wi-Fi 2.4 GHz keeps records in sync without touching the unit.
One False Accept in Ten Million
FAR ≤ 0.0001% · FRR ≤ 0.01%, with biometric templates encrypted at rest — banking-grade accuracy for a cable-free terminal.
Runs Android, Speaks Your Language
MTK Android platform with multi-language voice prompts and a multi-state LED for intuitive pass/fail feedback; Bluetooth 5.0 and USB Type-C for configuration and charging.
Closed-Loop Payment, Out of PCI Scope
Verify the palm, then let your till or back-office debit the account over the HF Palm SDK — canteens, staff stores and vending points run on your own balance, so there is no card scheme, no acquirer, no EMV certification and no PCI DSS audit.
Pocket-Sized, Wall or Desk, Zero Cabling
A screenless terminal that disappears into the door — until a palm touches the air above it.

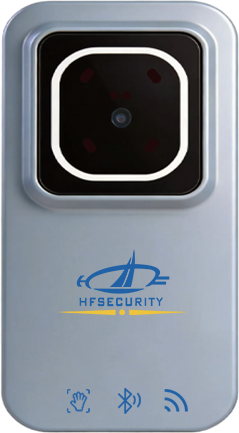

Contactless IR Palm Vein Module
Single infrared camera with a light diffuser ring reads subcutaneous vein patterns at a 7–15 cm hover — 360° no blind spots, auto exposure, nothing to touch and nothing to clean.

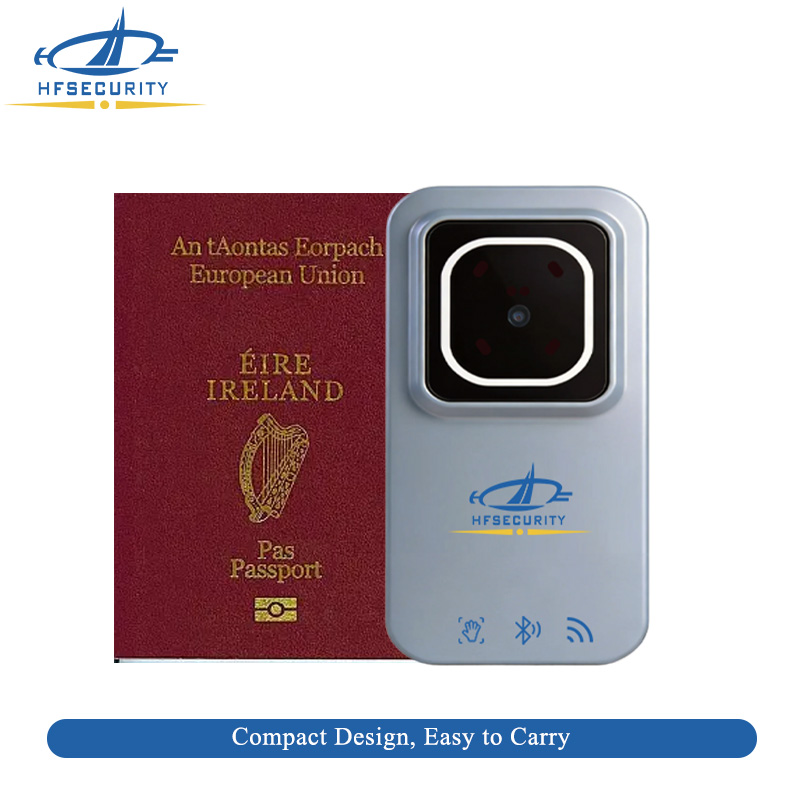

Pocket Size, Two Screws

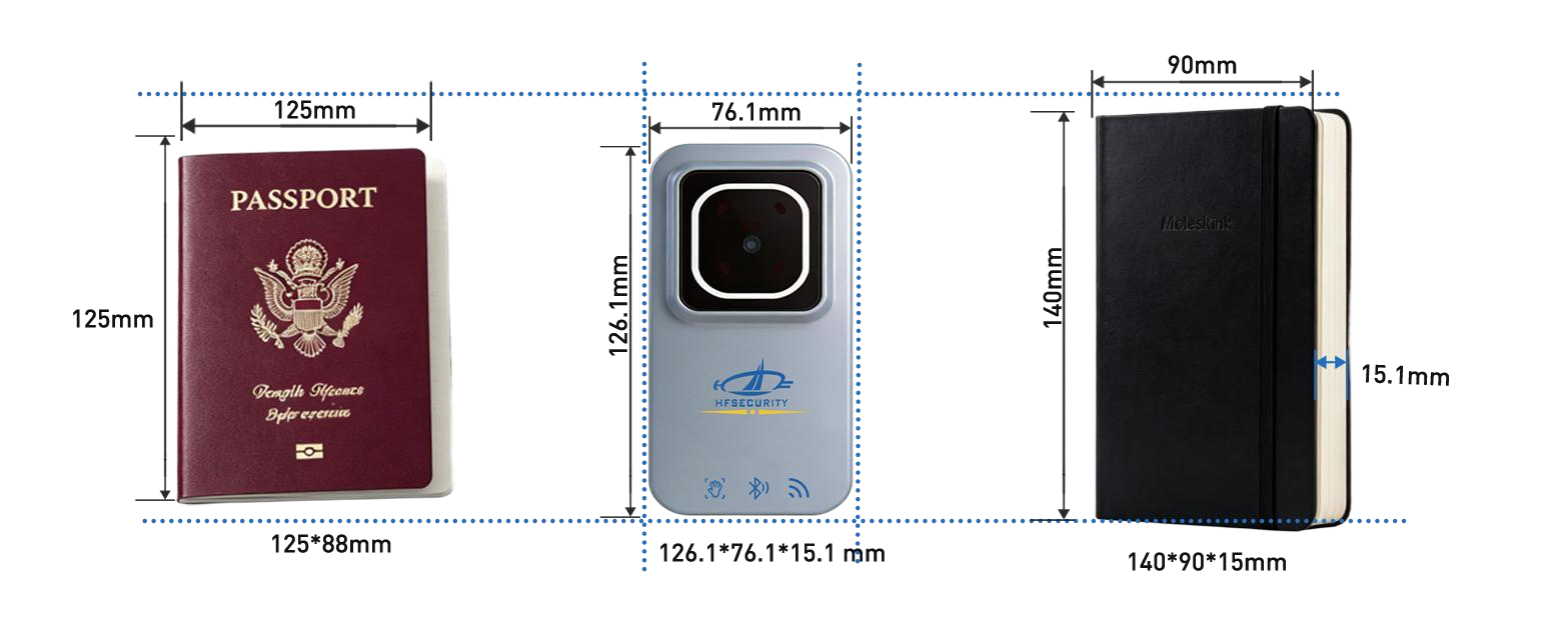

126.1 × 76.1 × 15.1 mm — smaller than a phone. Wall-mount beside any door or sit it on a desk; move it to the next site the day the project moves.

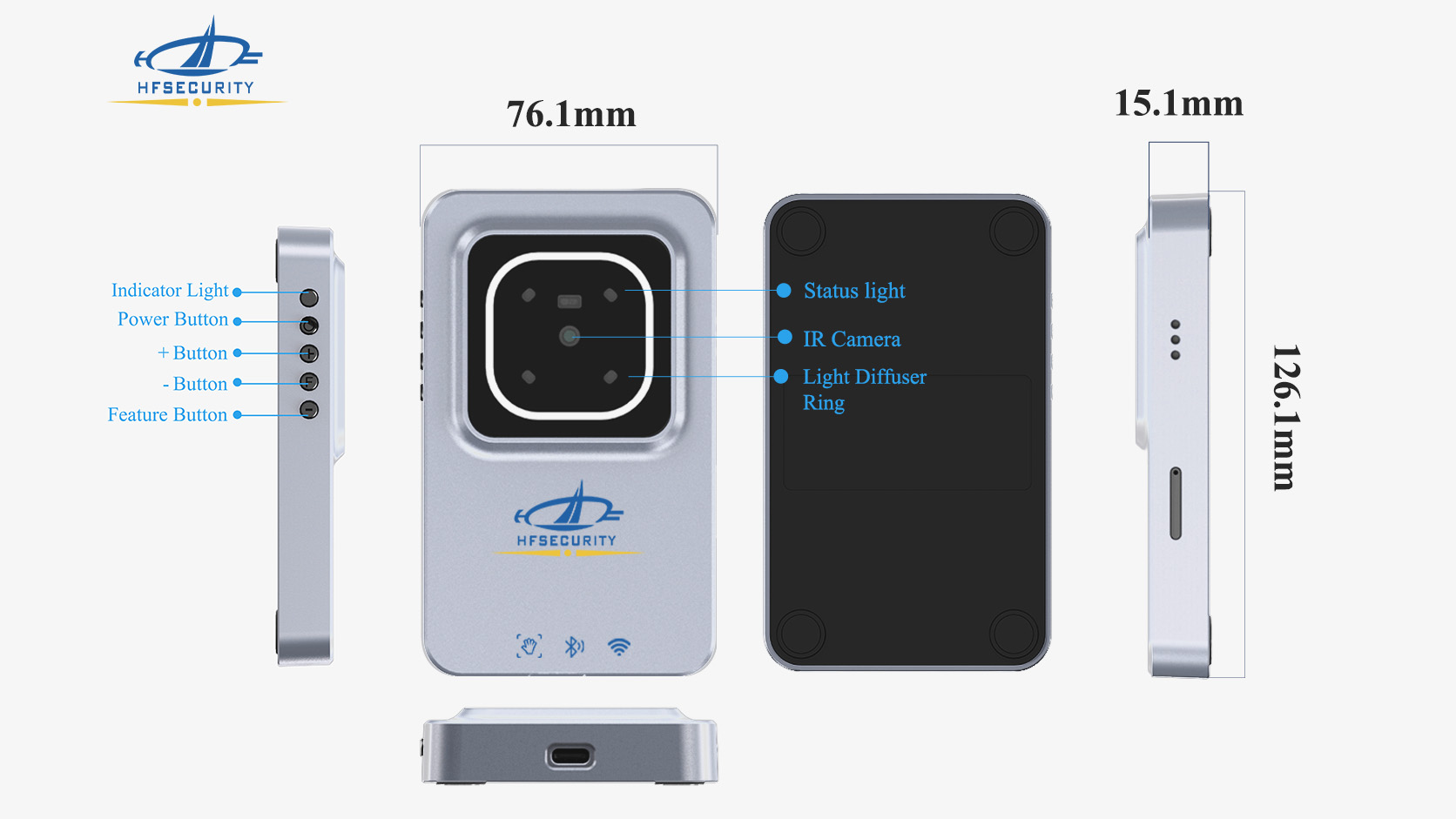

Voice & LED Guidance
Multi-language voice playback and a multi-state indicator light walk every user through enrollment and pass/fail — no training, no screen, no app required.
Every Function, Itemised
Five functional groups — the complete capability list behind the terminal.
🖐Biometric Core
Contactless identity at a natural hover
- Palm vein, 7–15 cm hover — single IR camera, infrared lighting, no touch required
- 360° no blind spots — present the palm at any angle; auto exposure (AE) adapts to ambient light
- Light diffuser ring — even illumination for stable imaging across skin tones and lighting
- Encrypted templates — palm feature information encrypted at rest on the device
⚡Matching Performance
Standalone speed without a server
- ≤ 450 ms recognition — 1:1 and 1:vN comparison modes on-device
- 20,000-palm local memory — a large office, campus gate or event runs without any server
- FAR ≤ 0.0001% · FRR ≤ 0.01% — banking-grade accuracy for a cable-free terminal
- Local deployment — algorithm runs fully on the terminal; no cloud round-trip to decide
📡Wireless & Power
Cable-free by design
- Bluetooth 5.0 — configuration, pairing and nearby handoff
- Wi-Fi 2.4 GHz — log upload and remote device management without touching the unit
- 2500 mAh built-in battery — unplugged operation between sites and shifts
- 5 V 2 A USB Type-C — external power supply for always-on door duty
🗄Management & Feedback
Run the fleet from anywhere
- Multi-language voice prompts — speaker playback guides every user through the flow
- Multi-state status LED — instant pass / fail / wait feedback at the door
- OTA / USB upgrades — firmware stays current in the field
- Recognition record upload — Wi-Fi or Bluetooth sync of logs for audit
🧩Integration & Uses
One database, many jobs
- HF Palm SDK — free SDK & API for secondary development and integration
- Access + attendance in one — the same on-board database serves both workflows
- Host support — Windows · Android · iOS · macOS · Linux via SDK and host tools
- Desktop or wall-mount — zero cabling; ideal for smart campus and intelligent security
📋Full Specification Sheet
Dimensions, module parameters, algorithm performance and SDK detail for tender documents.
Download the Datasheet →HF-PVBW3000 Specifications
Complete technical parameters for tender documents and system design.
| Item | HF-PVBW3000 |
|---|---|
| Biometric modality | Palm vein (contactless), single IR camera with light diffuser ring |
| Scanning distance | 7–15 cm working distance · 360° no blind spots · auto exposure (AE) |
| Capacity | 20,000 palm templates on-board · upgradeable to 5,000,000+ via cloud mode (templates on your own server) |
| Comparison modes | 1:1 · 1:vN (local recognition on device) |
| Recognition time | ≤ 450 ms |
| Accuracy | FAR ≤ 0.0001% · FRR ≤ 0.01% |
| Security | Palm feature information encryption · local deployment of the algorithm |
| Lighting | Infrared lighting technique |
| Wireless | Bluetooth 5.0 · Wi-Fi 2.4 GHz |
| Interface | USB Type-C port |
| Battery | 2500 mAh, built-in |
| Power supply | 5 V 2 A, supports Type-C external power supply |
| Main control chip | MTK chip (Android platform, standalone operation) |
| Host OS support | Windows · Android · iOS · macOS · Linux (via SDK / host tools) |
| User feedback | Multi-language voice playback · multi-state status indicator |
| Firmware | OTA support · USB upgrades |
| Installation | Desktop / wall-mounted, zero cabling |
| Dimensions | 126.1 × 76.1 × 15.1 mm |
| Data | Recognition record upload over Wi-Fi / Bluetooth · encrypted template storage · optional cloud sync to your server for large-scale libraries |
| Development | HF Palm SDK for secondary development · free SDK & API |
Eight Payment Sites That Need No EMV — and No PCI Audit
The PVBW3000 verifies the payer; your till, kiosk or back-office then charges the account through the free HF Palm SDK. Money stays inside your own closed-loop balance — no card scheme, no acquirer, so no EMV L1&L2 certification and no PCI DSS scope.

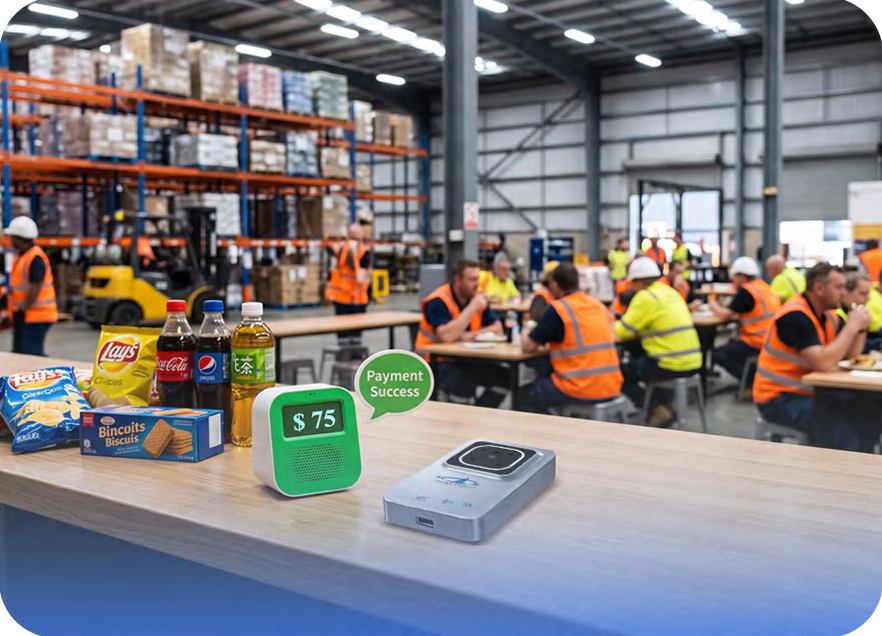

Staff Canteens & Site Kitchens
The task. A staff canteen still runs on meal cards that get lost, borrowed — or quietly handed to a colleague at the till.
With the PVBW3000. The terminal verifies the palm and passes the identity to your canteen till or back-office over the HF Palm SDK; the allowance is debited from the employee’s own meal account.
Result. An allowance that cannot be passed around — no cards to issue, block or replace, and no card scheme anywhere in the loop.

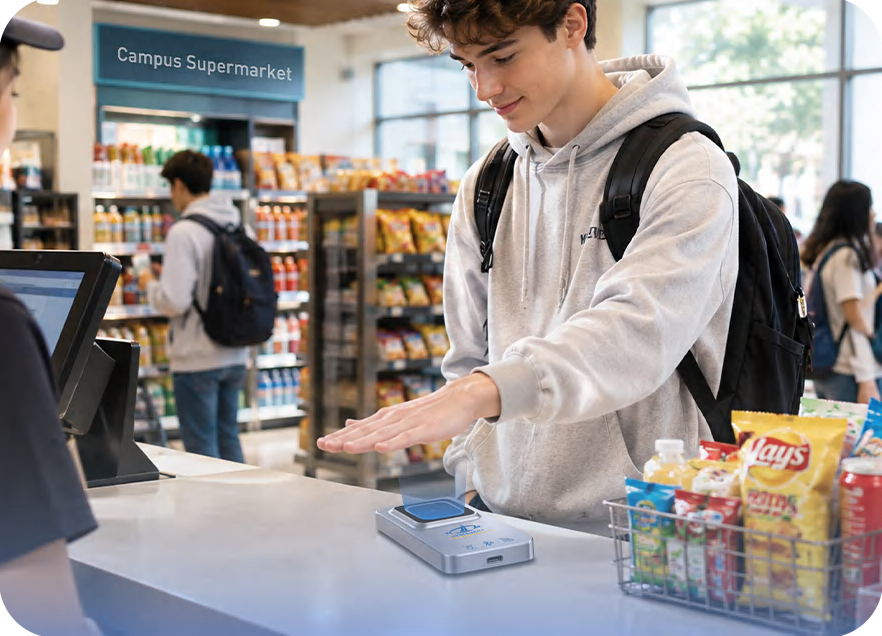

Campus & Closed-Loop Wallets
The task. One campus wallet has to work at the canteen till, the tuck shop and the event stand — all against the same stored balance.
With the PVBW3000. 20,000 palms on-board matched in ≤450 ms keep the lunch queue moving; entry, attendance and spend all ride one on-board database.
Result. One palm for entry and for spending — no top-up kiosk, and no replacement card on a parent’s invoice.
Pop-up Counters & Rented Stalls
The task. A market stall, fair booth or leased kiosk cannot drill into the landlord’s wiring just to add a payment reader.
With the PVBW3000. Desktop mode with the 2500 mAh battery and Wi-Fi 2.4 GHz — stored-value payment anywhere there is a table and a stallholder.
Result. Member payment live on opening morning, packed away with the stock at close.

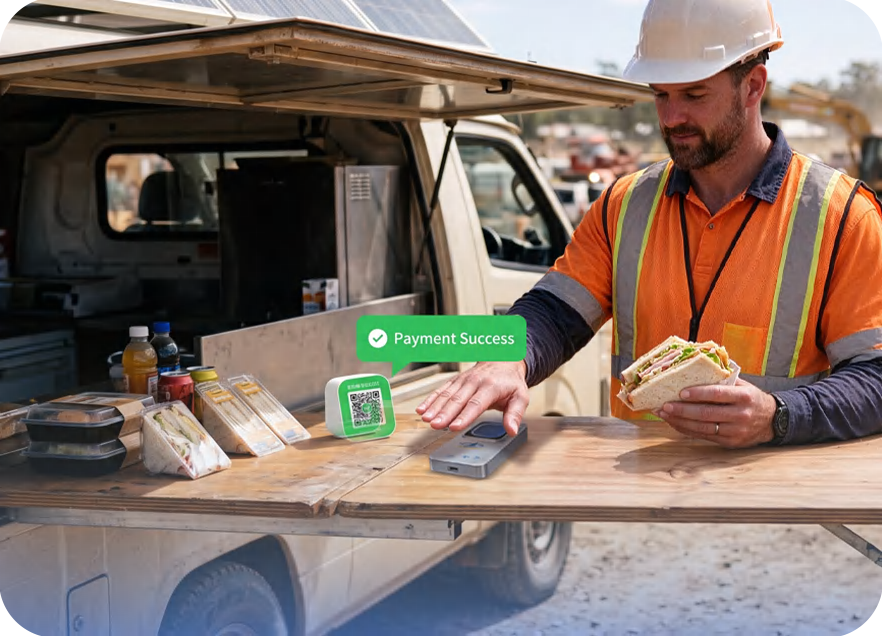

Canteen Vans & Mobile Kitchens
The task. A canteen van serving three sites a day has no mains power — and at two of them, no network either.
With the PVBW3000. Battery operation, on-device matching and locally stored transactions; the day’s takings upload the moment the van is back on Wi-Fi.
Result. The same meal account follows the crew from site to site — one terminal, no wiring, no cash box.
On the Door by Tomorrow Morning
Two screws, a Type-C cable and a palm — enrollment to log upload without custom hardware.
Mount & Power
Wall-mount with two screws or place on a desk; power over the 5 V 2 A Type-C supply or run on the built-in 2500 mAh battery.
Pair & Configure
Set up over Bluetooth 5.0 or Wi-Fi 2.4 GHz with the free HF Palm SDK — voice prompts in multiple languages walk you through it.
Enroll & Go
Enroll palms on-device, match in ≤450 ms, and let recognition records upload over Wi-Fi — access and attendance from the same database.
Pocket-sized footprint — 126.1 × 76.1 × 15.1 mm, desktop or wall-mounted, zero cabling end to end.
