Slap Fingerprint Scanner

Accuracy, Reliability, Versatility

“Ten Fingerprint Scanner FAP60 Bio600 is at the forefront of biometric technology, offering a cutting-edge solution for secure and rapid identity verification. Experience unmatched efficiency with its fast multi-finger capture feature, which can accurately process all ten fingerprints in mere seconds. The Ten Fingerprint Scanner boasts a high-resolution sensor that guarantees precise matching, ensuring that even the smallest fingerprint details are not missed. Its robust construction is designed for durability, making it a reliable choice for high-traffic environments. Furthermore, its user-friendly design allows for easy integration with various operating systems, streamlining your security infrastructure without hassle. Whether you’re looking to fortify your security measures or implement a comprehensive identification system, the Ten Fingerprint Scanner is your go-to solution for reliable biometric scanning

Ten Fingerprint Scanner

The BIO600 four-finger scanner produces clear images that fully meet quality requirements, supporting both left and right four-finger scans. The device supports dual thumb flat capture mode, single finger capture for all ten fingers, and single finger rolling capture mode.

The scanner meets large-scale national and city-level fingerprint collection needs, providing important technical support and reliable assurance for large-scale public application systems.

4 4 2 Fingerprint Sensor

Say goodbye to the outdated one-finger scanners. Our multi-finger biometric system not only increases efficiency with its ultra-fast processing but also significantly reduces the chances of false rejections and unauthorized access. The advanced four-finger detection elevates precision and reliability to new heights, ensuring only registered users gain entry.

Biometric Standards: ISO19794-4,ISO19794-2；ANSI378,ANSI381

Excellent appearance

Designed for ease of use, the Four Finger Slap Fingerprint Scanner boasts an intuitive interface that requires minimal training. The scanner is ideal for high-security environments such as financial institutions, research labs, and government facilities, where speed and accuracy are non-negotiable.

Live scan Detetction

Bio 600 biometric ten-finger enrollment device uses a high security live fingerprint detection technology that can identify and reject forged or cloned fingerprints, greatly enhancing the security of fingerprint collection.

Advanced scrolling capture technology

The Multimodal Biometrics slap fingerprint scanner adopts advanced rolling acquisition technology, which is free from the traditional method of fingerprinting. As long as the finger rolls gently in the fingerprint acquisition window, the three-sided image of the fingerprint can be stored in the computer to realize the function of timely acquisition and timely storage, thus greatly improving the efficiency of fingerprint acquisition, reducing labor intensity and improving work efficiency.

HFSECURITY slap fingerprint scanner offers an unparalleled level of security and convenience for a wide range of applications. With its advanced features and compatibility with multiple operating systems, it is a versatile and essential tool for any organization or individual who values security and privacy.

Private Lessons

Details
ELECTRICAL PARAMETERS
Supply Voltage	5.0V±5% Provided by USB
Operating Current	Typical Value<700mA
Interface	USB2.0
ESD	Contact：±8KV;Air：±15KV
ENVIRONMETAL PARAMETERS	#colspan#
Operating Temperature	-10℃-55℃
Storage Temperature	-40℃-60℃
Operating Humidity	＜90%R.H（Non-condensing）
Storage Humidity	20～93% R.H

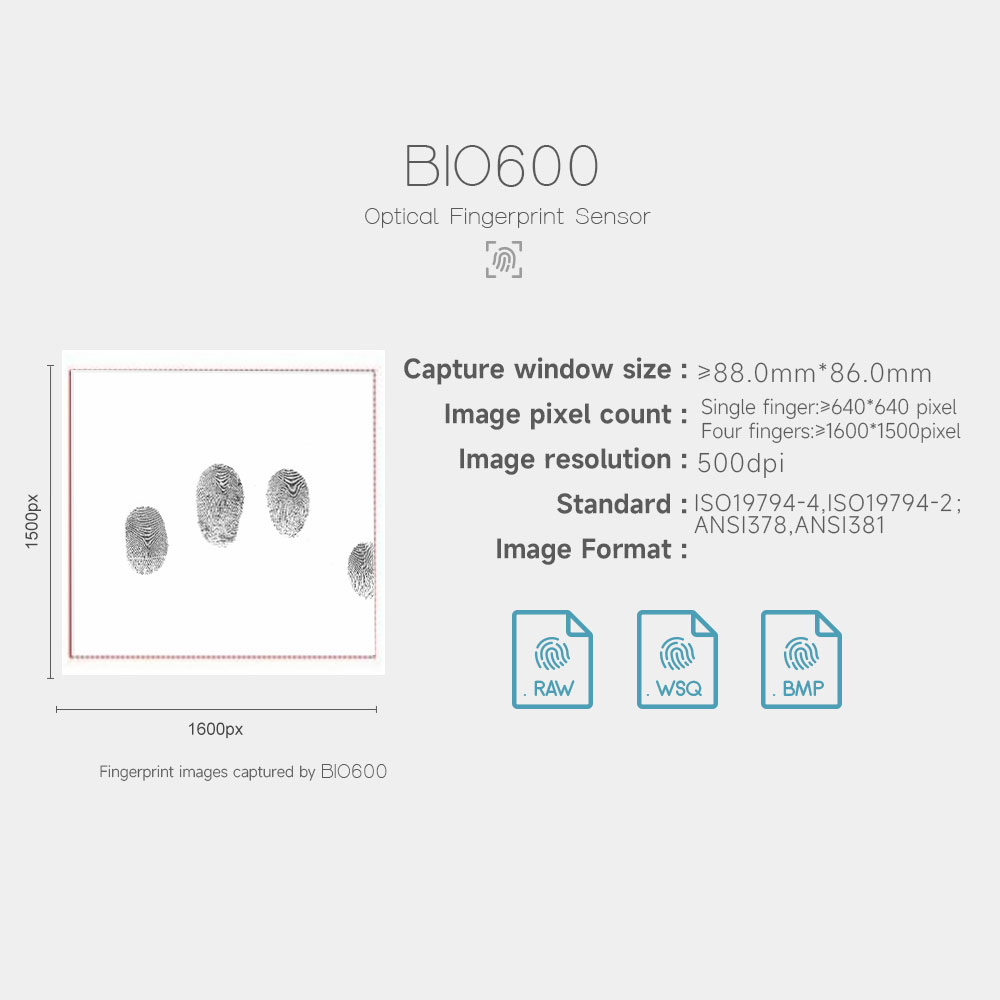

FINGERPRINT PARAMETERS
Image resolution	500dpi
Capture window size	≥88.0mm*86.0mm
Effective image size	Single finger: ≥32.5mm*32.5mm
Effective image size	Four fingers:≥81.2mm*76.2mm
Image pixel count	Single finger: ≥640*640 pixel
Image pixel count	Four fingers: ≥1600*1500pixel
Capture time	Single finger: ≥25FPS/SEC(≤66ms)
Capture time	Four fingers: ≥10FPS/SEC(≤100ms)
Image distortion	≤1%
Uneven grayscale of image background	≤10%
Gray level	8-bit,256levels
Dynamic range of gray level	≥180levels
Gray value of image background	225~255
Image defect/pixel defect	No more than 10 pixels with a diameter of 2 within any 600*600 area
Image center deviation	Deviation between image center and capture window center: X and Y directions both ≤15 pixels
Weight	1250g
Standard	ISO19794-4,ISO19794-2；ANSI378,ANSI381
Scale	171134104(LengthWidthHeight)

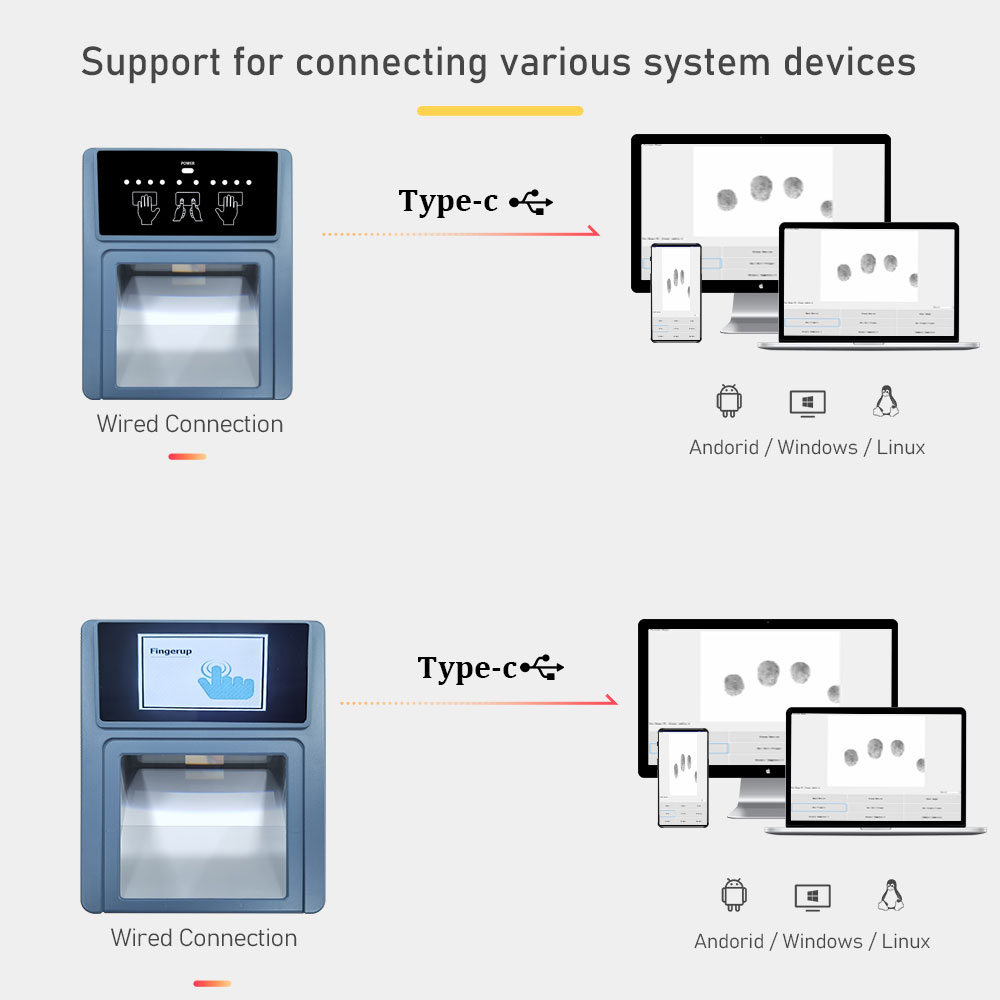

System	Windows,Android,Linux
NIST	NFIQ1,NFIQ2
Support	Wet and dry fingers
Software parameters
Image	Image stitching (single finger rolling capture)
Image	Image segmentation (four-finger planar capture)
Other	Finger position identification

Ultra-high image quality

The optical distortion-free fingerprint imaging system provides high-fidelity fingerprint images, which is beneficial for extraction

Powerful collection capabilities

The large capture window size integrates ten-finger flat, single-finger flat, and single-finger rolling capture in one device

High adaptability

Applicable to various types of fingerprints, automatically clears residual fingerprint marks and halo effects, resulting in higher imaging quality

Durable and shock-resistant

The device features a sturdy design, wear resistance, strong anti-shock and anti-vandalism properties, and is resistant to electrostatic interference, ensuring a long service life.

Easy secondary development

SDK (Software Development Kit) is provided
