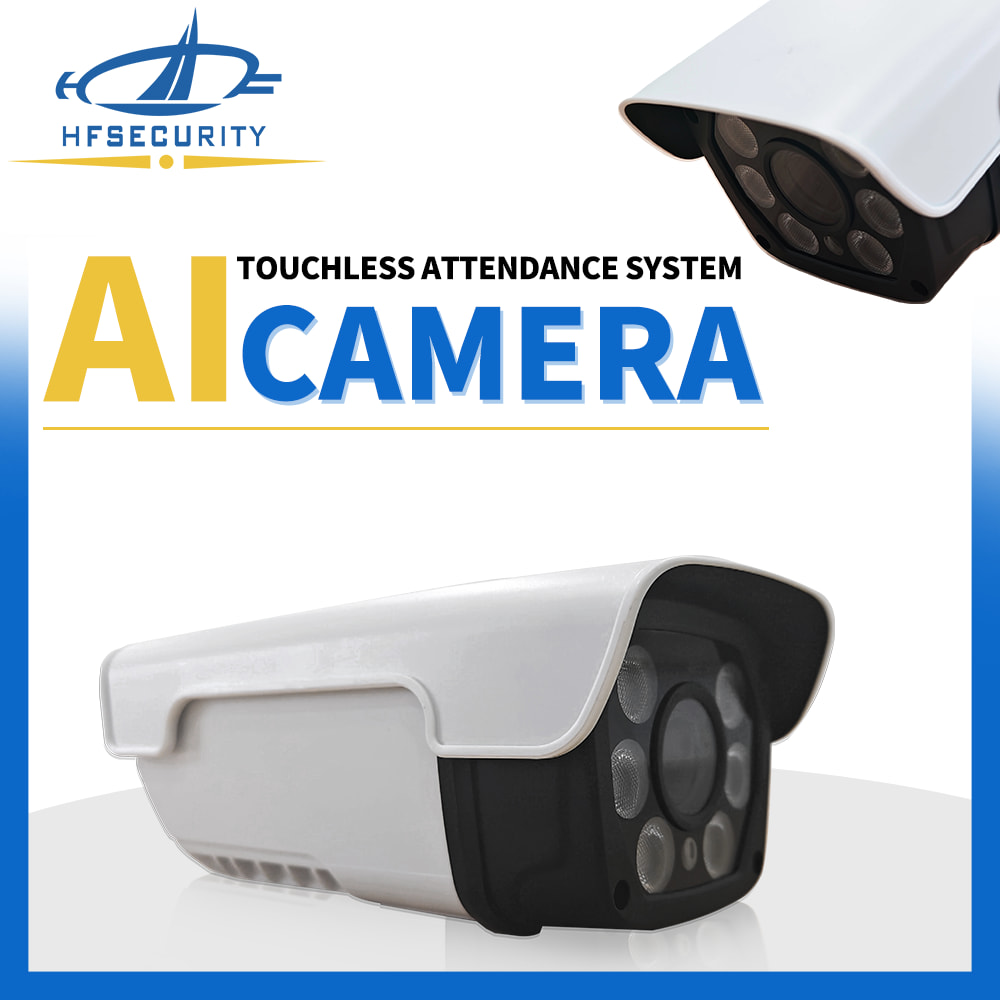

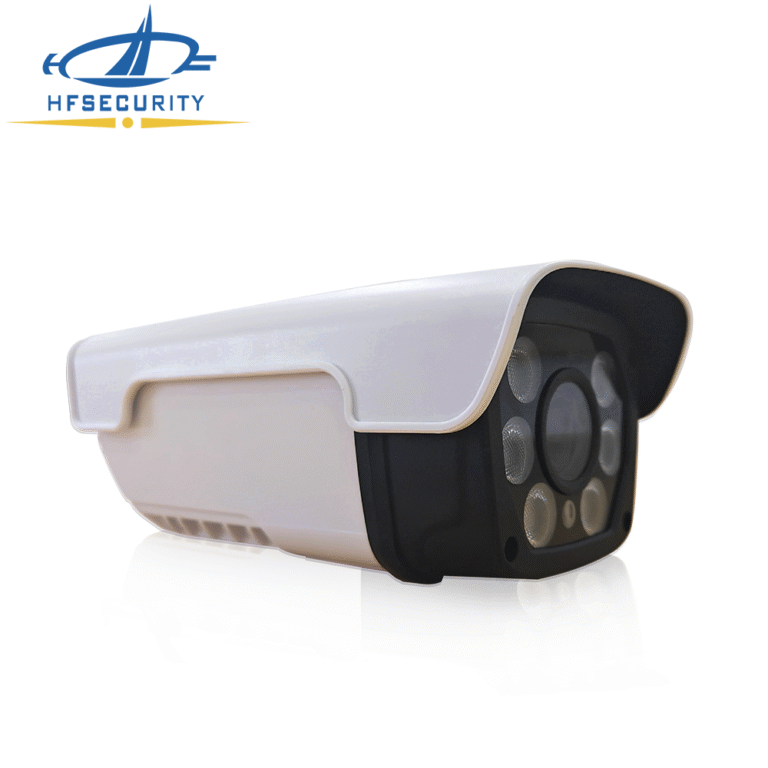

AI Face Recognition Camera
Model:HFX40Y
AI face recognition camera
- Supports 32 face detections at the same time
- 4 megapixels, electric zoom
- Support Onvif, GB28181, GA/T1400, MQTT, HTTP and other protocols
- Power supply DC 12V/2A, support POE (802.3at)
- IP66 Protection level
- Provide accurate face capture data
- Abnormal intrusion alarm
AI Face Recognition Camera
HFSECURITY’s new generation of AI face recognition cameras opens a new era of active intelligent security for you!
HFSECURITY AI face recognition cameras can provide millisecond-level accurate recognition, with the support of deep AI algorithms, and instantly compare massive databases with an accuracy rate of up to 99.98%. Whether it is an employee, visitor or blacklisted person, it can be identified at a glance!
HFSECURITY AI face recognition camera is your trusted choice!
Are you still worried about the chaotic entrance and exit management, the risk of identity fraud, and the difficulty of deploying defenses in key areas? Traditional monitoring records passively, making it difficult to distinguish the truth from the false at critical moments?

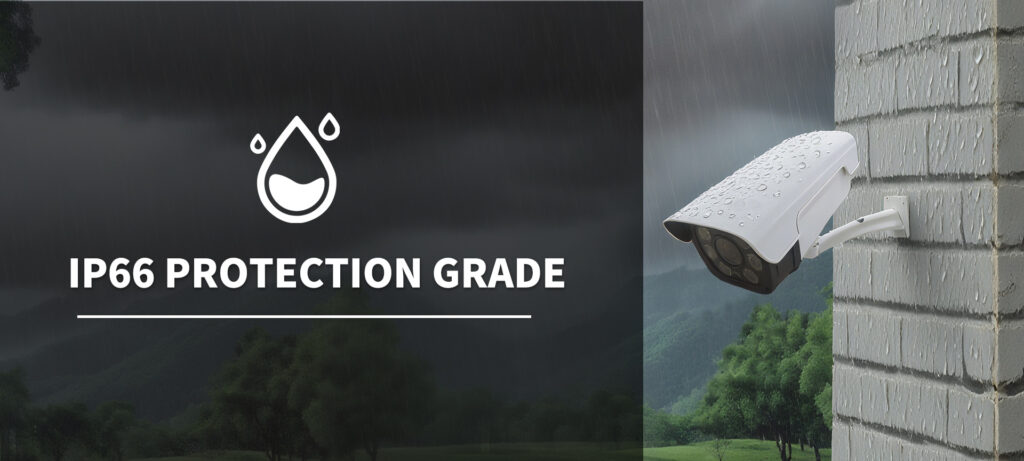

IP66 water and dust resistance
Our HF-X40Y facial recognition camera can provide day and night care, stably cope with complex environments, and the IP66 protection level can easily cope with all kinds of outdoor weather

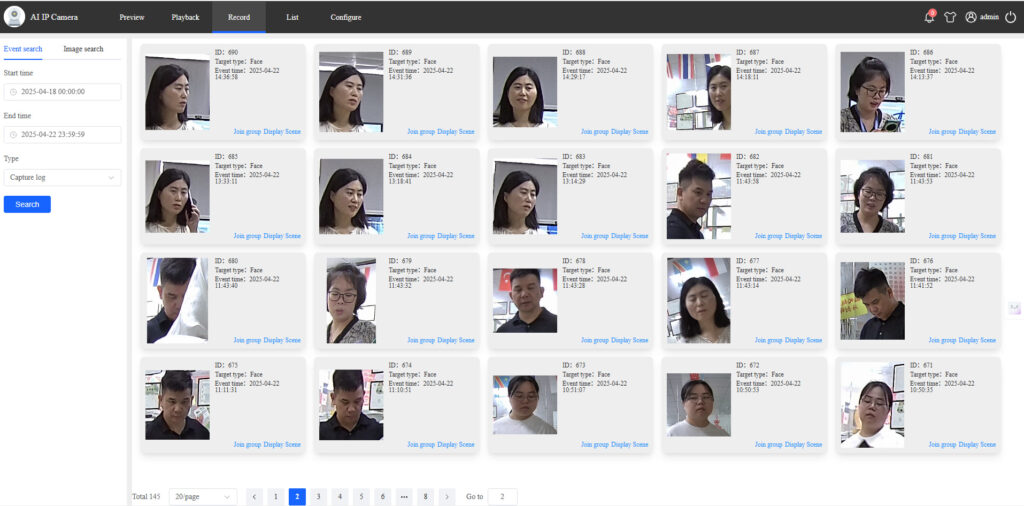

Face recognition and capture
Ai camera with face recognition Supports 32 face detections at the same time, supports mobile face detection and fast capture of face information, face capture, and mask detection
Regardless of cold or heat, strong as one
HFSECURITY hardcore AI face recognition camera is designed for harsh environments! It operates stably in an ultra-wide temperature range of -30℃ to 60℃, ensuring security without blind spots and without interruption!

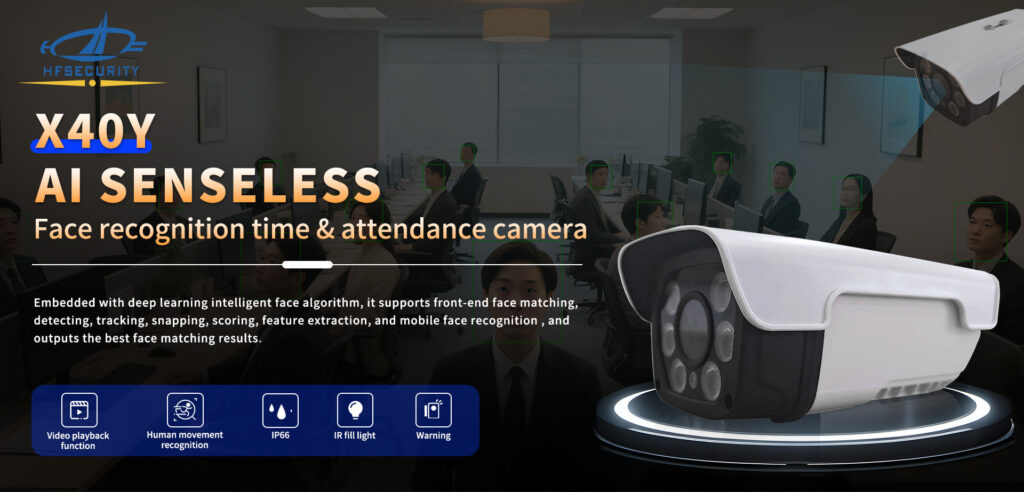

HFSECURITY X40Y Ai senseless face recognition camera embedded with deep learning intelligent face algorithm, it supports front -end face matching, detecting, tracking, snapping, scoring, feature extraction, and mobile face recognition, outputs the best matching results
Specifications
| Product Model | X40Y |
| Motherboard performance | Computing power 1.0Tops, memory: 8Gbit, flash memory: 8GB EMMC |
| Sensor Type | 1/3″CMOS |
| Lenses | |
| Lenses type | Electric zoom |
| Field of view | (H)103.4° (W) – 29.3°(T) |
| (V)54.3° (W) – 16.5°(T) | |
| (D)124.2°(W) – 33.6° (T) | |
| Aperture | 1.6-3.3±10% |
| Focal length | 2.8-12mm |
| Auto Focus | Support |
| Optical Properties | |
| Infrared light | Maximum fill light distance 40 meters |
| White light | Maximum fill light distance: 10 meters |
| Image characteristics | |
| Image Settings | Brightness, contrast, saturation, sharpness |
| Minimum illumination | 0.001Lux (color mode), 0.001Lux (black and white mode), 0Lux (fill light on) |
| White Balance | Automatic/Manual |
| Strong light suppression | Support |
| Backlight compensation | Support |
| Noise Reduction | Support 2D/3D digital noise reduction |
| Wide dynamic range | Support |
| Signal-to-Noise Ratio | ≥56db |
| Gain Control | Auto/Shutter Priority/Gain Priority/Manual |
| Coding Features | |
| Video compression standards | H.265 H.264 H.264H H.264B MJPEG |
| Resolution | Stream 1: 2560×1440 1920×1080 1280*720 |
| Stream 2: 704×576 960*544 640*360 320*184 | |
| Stream 3: 640*360 704×576 960*544 320*184 | |
| Frame rate | 25fps, 30fps |
| Bit rate control | CBR/VBR |
| Default bitrate | 4096kbps |
| Bit rate adjustment range | Main and auxiliary 30Kbps~16Mbps continuously adjustable |
| Audio compression standards | G.711A G.711U G.726 |
| Network characteristics | |
| Network Protocol | HTTP,TCP,RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS, PPPoE,IPv4,UPnP,NTP |
| Protocol | Onvif GB28181 GA/T1400 MQTT HTTP |
| Analysis & Energy characteristics | |
| General Behavior Analysis | Area Invasion, Tripwire Invasion, Headcount |
| Alarm function | Video blocking alarm, motion detection alarm, sound and light linkage alarm, custom alarm voice. |
| Video recording mode | Manual recording, event detection recording, timed recording, alarm recording |
| OSD information overlay | Time, channel title, device name, support customization |
| Day and night mode | Daytime and nighttime, support timed switching, manual switching, automatic switching |
| Privacy Masking | Supports 4 locales |
| Mirror | Support 90°/180° image flip |
| ROI | Support |
| Smart Features | |
| Detection Type | Face capture, recognition, mask detection |
| Number of tests | Supports up to 32 targets to be detected and captured simultaneously |
| Face detection area | Support |
| Face Detection | Supports face detection, face frame tracking, optimal capture, fast capture, face deduplication, face enhancement, face tracking exposure |
| Detection range | Supports adjustable minimum/maximum detection targets |
| List library capacity | 10,000 name lists and 70,000 snapshot recognition records |
| Image Type | Face picture, single-inch photo, panoramic photo |
| Image Format | JPG |
| Interface Characteristics | |
| Network Interface | 1 RJ45, 10/100M adaptive Ethernet port |
| Power interface | DC12V /2A (-15%~+10%) |
| Alarm interface | 1 in 1 out |
| Audio Interface | 1 audio input/1 audio output (RCA connector), Built-in MIC/speaker |
| SD card interface | Maximum capacity 256GB |
| Reset | Software reset |
| Physical properties | |
| Installation | Wall mount, ceiling mount |
| Operating voltage | DC12V /2A (-15%~+10%)\POE(802.3at ) |
| Power consumption | <8W |
| Operating temperature | -30℃-+60℃ |
| Operating humidity | 0% ~95% RH (non-condensing) |
| Protection level | IP66 |

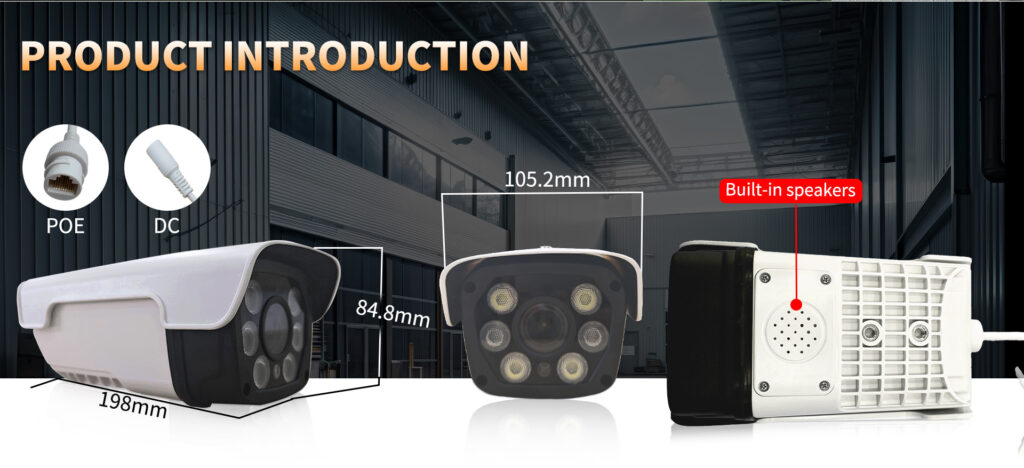

| Product size | 198*105*85mm |
| Packing size | 276*162*148 |
| Weight | 650g |
what makes us different
The Feature we have
Ultra-clear picture quality
4 million ultra-clear, feel a different visual experience
POE power supply
only one network cable is needed for power supply, plug and play
Face capture
Provide accurate face capture data
Alarm linkage:
If there is abnormal intrusion in the area, turn on the sound deterrence alarm
H.265
Intelligent compression encoding, longer storage time, faster processing
IP66
IP66-level protection design, can be used indoors and outdoors
Choosing HFSECURITY means choosing:
Cutting-edge AI technology: Continuously iterating algorithms to ensure accurate and fast recognition.
Stable and reliable quality: Industrial-grade design, rigorous testing, adaptable to various complex environments.
Professional security solutions: More than just hardware, providing customized scenario solutions and worry-free services.
